AK5393

Features:

Enhanced Dual Bit ADC
Sampling Rate: 1kHz~108kHz
Full Differential Inputs
S/(N+D): 105dB
DR: 117dB
S/N: 117dB
High Performance Linear Phase Digital AntiAlias filter
   · Passband: 0~21.768kHz(@fs=48kHz)
   · Ripple: 0.001dB
   · Stopband: 110dB
Digital HPF & Offset Calibration for Offset Cancel
Power Supply: 5V±5%(Analog), 3~5.25V(Digital)
Power Dissipation: 470mW
Package: 28pin SOP
AK5392 Pin compatible

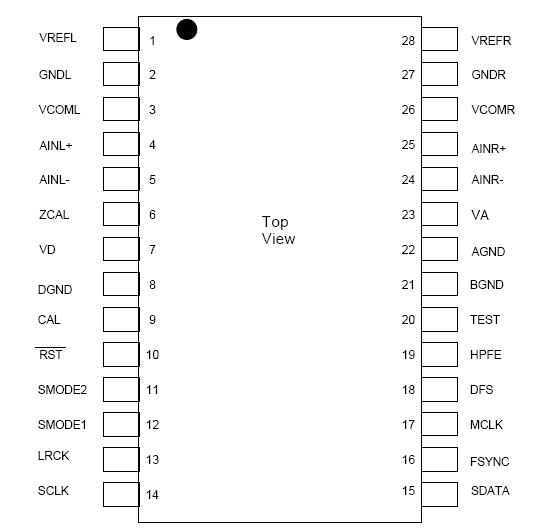

Pinout

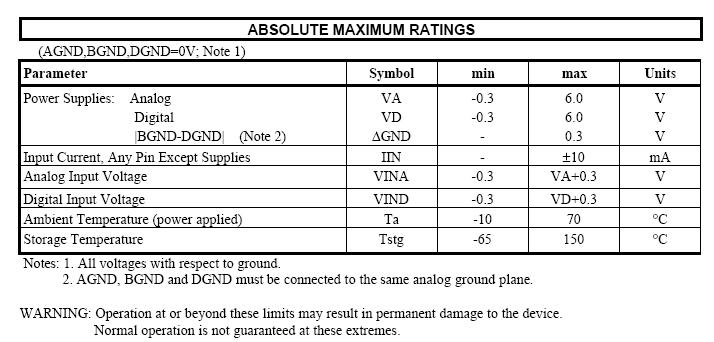

Specifications




Description

The AK5393 is a 24bit, 128x oversampling 2ch A/D Converter for professional digital audio systems. The modulator in the AK5393 uses the new developed Enhanced Dual Bit architecture. This new architecture achieves the wide dynamic range, while keeping much the same superior distortion characteristics as conventional Single Bit way. The AK5393 performs 117dB dynamic range, so the device is suitable for professional studio equipment such as digital mixer, digital VTR etc.
