AK8812

Features: • NTSC-M, PAL-B,D,G,H,I,M,N encoding.• Simultaneous composite video signal and S-video signal outputs• Y/Cb/Cr Component output (Based on EIAJ Guideline)• CCIR-656 4:2:2 8-bit Parallel Input- EAV Decoding• Master/Slave Operation- Digital Field Sync I/O- Digi...

product image

AK8812 Picture
See larger image
SeekIC No. : 004279448 Detail

AK8812: Features: • NTSC-M, PAL-B,D,G,H,I,M,N encoding.• Simultaneous composite video signal and S-video signal outputs• Y/Cb/Cr Component output (Based on EIAJ Guideline)• CCIR-656 ...

AK8812 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AK8812
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• NTSC-M, PAL-B,D,G,H,I,M,N encoding.
• Simultaneous composite video signal and S-video signal outputs
• Y/Cb/Cr Component output (Based on EIAJ Guideline)
• CCIR-656 4:2:2 8-bit Parallel Input
- EAV Decoding
• Master/Slave Operation
- Digital Field Sync I/O
- Digital Vertical/Horizontal Sync I/O
• Y filtering 2 x over-sampling
• C filtering 4 x over-sampling
• Single 27MHz Clock (The polarity could be inverted by SYSINV pin)
• Triple 10-bit DACs
• I2C Interface (400kHz)
• Closed Caption encoding (NTSC: line 21,284-SMPTE PAL: line 21,334-CCIR)
• Macrovision Copy Protection Rev. 7.1* (Only for AK8812)
• VBID, CGMS(EIAJ CPR-1024)
• On-chip Color bar generator
• Low Power Consumption
• 3.3V only, CMOS Monolithic
• 48pin LQFP Package


Pinout

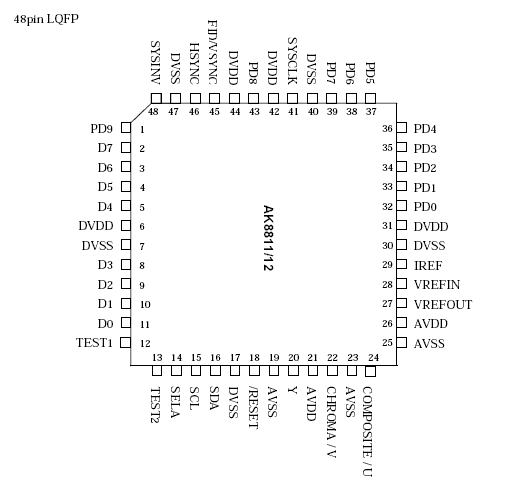

Connection Diagram


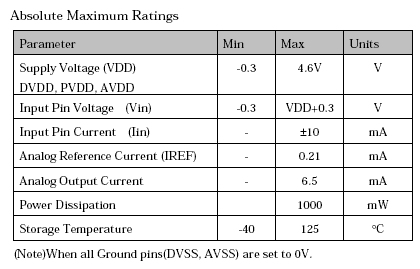

Specifications

Connection Diagram


Description

The AK8811 and AK8812 are low voltage, low power and small packaged Digital Video Encoder.They are suitable for a portable DVD or VCD player. They convert ITU-R.BT601/656 standard 8-bit parallel data into analog composite video, S-Video or analog component signals Y/Cb/Cr in NTSC and PAL formats.
AK8811 and AK8812  support Macrovision Copy Protection Rev.7.1(only AK8812), Closed captioning and Video Blanking ID(CGMS). These functions are controlled by high-speed I2C Bus interface.
