General Description
AK9813A General Description
The AK9813A includes 12 channel, 8bit D/A converters with on-chip output buffer amps and it is capable to store the input digital data of each DAC by on-chip non-volatile CMOS EEPROM. The AK9813A is optimally designed for various circuit adjustments for consumer and industrial equipments and it is ideally suited for replacing mechanical trimmers.
AK9813A Maximum Ratings
|
Parameter |
Symbol |
Condition |
Spec. |
Units |
|
Power Supply Input Voltage Ambient Temperature Storage Temperature |
VCC VIO Ta TST |
relative to GND
|
-0.3 - +6.5 -0.3 - VCC+0.3 -10 - +85 -65 - +150 |
V V °C °C |
AK9813A Features
EEPROM SECTION
` 12 words Õ 8bit Õ 4 organization for DAC
D/A converter section
` 12 channels
` Resolution : 8bit
` DNL : -1a+2 LSB
` INL : '1.5 LSB
` Analog Output Voltage Range : GND a VCC
Operating Voltage Range
` Digital section : 2.7Va5.5V
` Analog section : 5.0V'0.5V,3.3V'0.3V
24pin VSOP
` 12 words Õ 8bit Õ 4 organization for DAC
D/A converter section
` 12 channels
` Resolution : 8bit
` DNL : -1a+2 LSB
` INL : '1.5 LSB
` Analog Output Voltage Range : GND a VCC
Operating Voltage Range
` Digital section : 2.7Va5.5V
` Analog section : 5.0V'0.5V,3.3V'0.3V
24pin VSOP

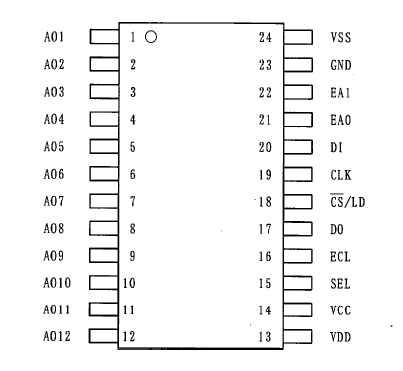

AK9813A Connection Diagram
AK9813A
