Part Number: AL108-338
Description: The AL108-338 is an LNA designed for use in 3.23.8 GHz WLAN applications. The leadless surface mount package houses a G...
- Table of contents:
AL108-338
-
Suppliers
DataSheet
General Description
AL108-338 General Description
The AL108-338 is an LNA designed for use in 3.23.8 GHz WLAN applications. The leadless surface mount package houses a GaAs PHEMT MMIC that yields low noise, good 50 match, high gain and powerful P1 dB performance. Powered by a single 5 V supply, it also offers a 10 dB gain adjustment range.
AL108-338 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 20 dBm |
| Bias Voltage | 6 V Max. |
| Storage Temperature | -40 to +85°C |
| Operating Temperature | -65 to +150°C |
AL108-338 Features
For 3.23.8 GHz Fixed Wireless Applications
Adjustable Gain
+7 dBm Output Power
+17 dBm Output IP3
2.7 dB Noise Figure
Single +5 V Supply
Input and Output Matched to 50
Adjustable Gain
+7 dBm Output Power
+17 dBm Output IP3
2.7 dB Noise Figure
Single +5 V Supply
Input and Output Matched to 50

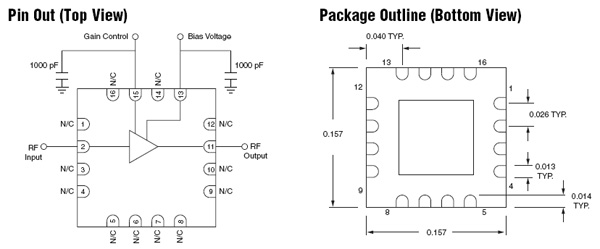

AL108-338 Connection Diagram
AL108-338
PDF/DataSheet Download
- Datasheet: AL108-338
- File Size: 192968 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
