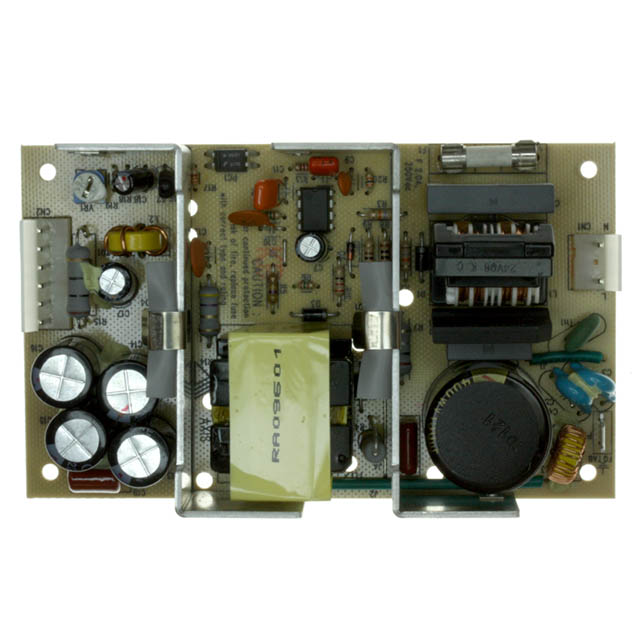

See larger image

SeekIC No. : 002754300 Detail

ALS50-5: Linear and Switching Power Supplies 45W 5V 9A

ALS50-5 Data Sheet

US $ 11.7~15.26 / Piece | Get Latest Price

Part Number:: ALS50-5
Mfg:: Triad Magnetics
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50

Unit Price
$15.26
$13.9
$13.13
$11.7

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ALS50-12 evaluate
US $11.7 - 15.26 / Piece

Linear and Switching Power Supplies 50.4W 12V 4.2A
ALS50-24 evaluate
US $11.7 - 15.26 / Piece

Linear and Switching Power Supplies 50.4W 24V 2.1A
ALS50-3.3 evaluate
US $11.7 - 15.26 / Piece

Linear and Switching Power Supplies 30W 3.3V 9.1A

Product Details

Quick Details

Product :	Switching Supplies	Commercial/Medical :	Commercial
Output Power Rating :	45 W	Input Voltage :	90 VAC to 260 VAC, 120 VDC to 370 VDC
Number of Outputs :	1	Output Voltage (Channel 1) :	5 VDC
Output Current (Channel 1) :	9.6 A	Mounting Style :	PCB
Dimensions :	127 mm L x 76.2 mm W

Description

Output Voltage (Channel 2) :
Output Current (Channel 2) :
Output Voltage (Channel 3) :
Output Current (Channel 3) :
Product : Switching Supplies
Number of Outputs : 1
Commercial/Medical : Commercial
Output Voltage (Channel 1) : 5 VDC
Dimensions : 127 mm L x 76.2 mm W
Mounting Style : PCB
Output Power Rating : 45 W
Input Voltage : 90 VAC to 260 VAC, 120 VDC to 370 VDC
Output Current (Channel 1) : 9.6 A

Parameters:

Technical/Catalog Information	ALS50-5
Vendor	Triad Magnetics
Category	Power Supplies
Number of Outputs	1
Power (Watts)	50W
Voltage - Output	5V
Voltage - Input	110/220VAC (90 ~ 260VAC, 120 ~ 370VDC)
Power Supply Type	Switching (Open Frame)
1st Output	5 VDC @ 9.6A
2nd Output	-
3rd Output	-
4th Output	-
Mounting Type	Chassis Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ALS50 5 ALS505 237 1290 ND 2371290ND 237-1290
