AM028S2-A2

Features:

 Surface Mount Package
 Low Conversion Loss, 7 dB
 Low LO Power Requirement, 8 dBm
 Wide IF Bandwidth, 06 GHz
 No DC Bias Required
 100% RF Testing for Conversion Loss

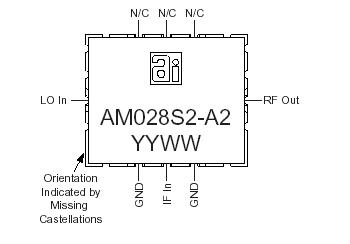

Pinout




Specifications

Characteristic                                                   Value
Operating Temperature (TC)                    -55°C to +85°C
Storage Temperature (TST)                      -65°C to +125°C
Total Input Power (RF + IF)                         +20 dBm


Description

The AM028S2-A2 is a broadband millimeterwave mixer in a rugged surface mount package that is compatible with high volume solder installation. The AM028S2-A2 single balanced up converter mixer is designed for use in millimeterwave communication and sensor systems as a frequency conversion stage in the transmit chain when wide dynamic range and high linearity are required. The robust ceramic surface mount package provides excellent electrical performance and a high degree of environmental protection for long-term reliability. All mixers are screened at the operating frequencies prior to shipment for guaranteed performance. Mixer is targeted for high volume millimeterwave applications such as point-to-point and point-to-multipoint wireless communications systems.
