General Description
AM29DL320GB70EF General Description
The Am29DL320G is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ15DQ0; byte mode data appears on DQ7DQ0. The device is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers.
The device is available with an access time of 70, 90, or 120 ns. The devices are offered in 48-pin TSOP, 48-ball or 63 ball FBGA packages, and 64-ball Fortified BGA. Standard control pins-chip enable (CE#), write enable (WE#), and output enable (OE#)-control normal read and write operations, and avoid bus contention issues.
AM29DL320GB70EF Maximum Ratings
Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied . . . . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . .. . . . .0.5 V to +4.0 V
A9, OE#, and RESET# (Note 2) . . . . .0.5 V to +12.5 V
WP#/ACC . . . . . . . . . . . . . . . . . . .. . .0.5 V to +10.5 V
All other pins (Note 1) . . . . . . .. . 0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . . . . . . 200 mA
Plastic Packages . . . . . . . . . . . . . . . 65°C to +150°C
Ambient Temperature
with Power Applied . . . . . . . . . . . . 65°C to +125°C
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . . . .. . . . .0.5 V to +4.0 V
A9, OE#, and RESET# (Note 2) . . . . .0.5 V to +12.5 V
WP#/ACC . . . . . . . . . . . . . . . . . . .. . .0.5 V to +10.5 V
All other pins (Note 1) . . . . . . .. . 0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . . . . . . 200 mA

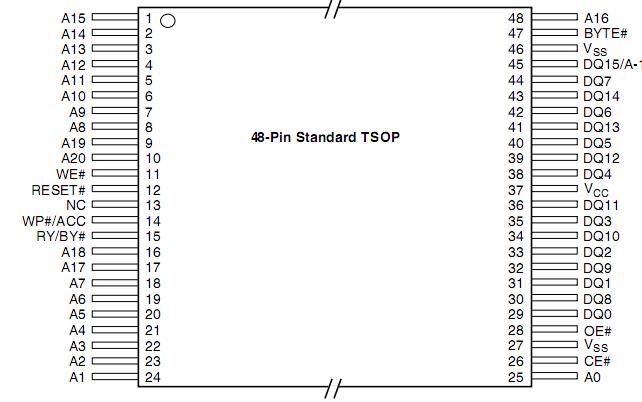

AM29DL320GB70EF Connection Diagram
