Purchase AM29F010B70EE, In-stock AM29F010B70EE From SeekIC.
Part Number: AM29F010B70EE
Description: The Am29F010B is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The Am29F010B is offered in 32 pin PD...
- Table of contents:
AM29F010B70EE
-
Suppliers
DataSheet
General Description
AM29F010B70EE General Description
The Am29F010B is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The Am29F010B is offered in 32 pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers.
This device is manufactured using AMD's 0.32 µm process technology, and offers all the features and benefits of the Am29F010 and Am29F010A.
AM29F010B70EE Maximum Ratings
Storage Temperature
Plastic Packages . . . . . . . . . . . . . . . 65°C to +125°C
Ambient Temperature
with Power Applied . . . . . . . . . . . . 55°C to +125°C
Voltage with Respect to Ground
VCC (Note 1). . . . . . . . . . . . . . . . . . . ..2.0 V to +7.0 V
A9 (Note 2). . . . . . . . . . . . . . . . . . . ..2.0 V to +13.0 V
All other pins (Note 1) . . . . . . . . . . . . .2.0 V to +7.0 V
Output Short Circuit Current (Note 3) . . . . . . . 200 mA
Plastic Packages . . . . . . . . . . . . . . . 65°C to +125°C
Ambient Temperature
with Power Applied . . . . . . . . . . . . 55°C to +125°C
Voltage with Respect to Ground
VCC (Note 1). . . . . . . . . . . . . . . . . . . ..2.0 V to +7.0 V
A9 (Note 2). . . . . . . . . . . . . . . . . . . ..2.0 V to +13.0 V
All other pins (Note 1) . . . . . . . . . . . . .2.0 V to +7.0 V
Output Short Circuit Current (Note 3) . . . . . . . 200 mA

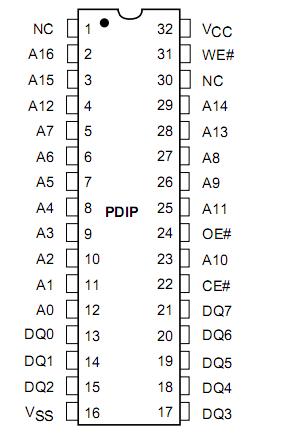

AM29F010B70EE Connection Diagram
AM29F010B70EE
