Purchase AM5668, In-stock AM5668 From SeekIC.
D/C:07+
Part Number: AM5668
D/C: 07+
Description: The AM5668 is a five-channel BTL driver IC, in which four channels are voltage-type BTL drivers for tracking and focus ...
- Table of contents:
AM5668
-
Suppliers
DataSheet
General Description
AM5668 General Description
The AM5668 is a five-channel BTL driver IC, in which four channels are voltage-type BTL drivers for tracking and focus actuators, sled and spindle motors, the other one channel is DC motor driver for tray which supports forward/ reverse control. This IC also contains two generalpurpose independent precise voltage comparators.
AM5668 Features
· 4-Channel DC Motor BTL Driver
· 1-Channel Forward/Reverse Control DC Motor BTL Driver
· Two Built-in Comparators
· Built-in Level Shift Circuit
· Built-in Mute Mode
· Built-in Thermal Shutdown Circuit
· Operating Voltage: 4.3V to 13.2V
· 1-Channel Forward/Reverse Control DC Motor BTL Driver
· Two Built-in Comparators
· Built-in Level Shift Circuit
· Built-in Mute Mode
· Built-in Thermal Shutdown Circuit
· Operating Voltage: 4.3V to 13.2V
AM5668 Typical Application
DVD Player Driver

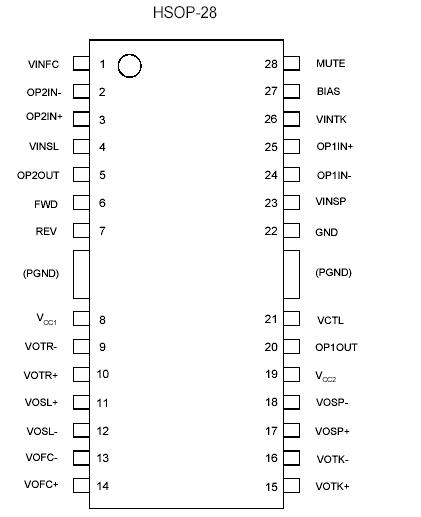

AM5668 Connection Diagram
AM5668
PDF/DataSheet Download
- Datasheet: AM5668
- File Size: 140060 KB
- Manufacturer: ETC [ETC]
- Click here to Download
