AME8804

Features: Very Low Dropout Voltage Guaranteed 300mA Output Accurate to within 1.5% 30µA Quiescent Current Over-Temperature Shutdown Current Limiting Short Circuit Current Fold-back Power Good Detector (6 pin version only) Power-Saving Shutdown Mode Space-Saving SOT-26 and SOT-25 Adjustable ...

product image

AME8804 Picture
See larger image
SeekIC No. : 004284694 Detail

AME8804: Features: Very Low Dropout Voltage Guaranteed 300mA Output Accurate to within 1.5% 30µA Quiescent Current Over-Temperature Shutdown Current Limiting Short Circuit Current Fold-back Power Good...

AME8804 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AME8804
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Very Low Dropout Voltage
Guaranteed 300mA Output
Accurate to within 1.5%
30µA Quiescent Current
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Power Good Detector (6 pin version only)
Power-Saving Shutdown Mode
Space-Saving SOT-26 and SOT-25
Adjustable Output Voltages
Low Temperature Coefficient


Application

Instrumentation
Portable Electronics
Wireless Devices
Cordless Phones
PC Peripherals
Battery Powered Widgets
Electronic Scales

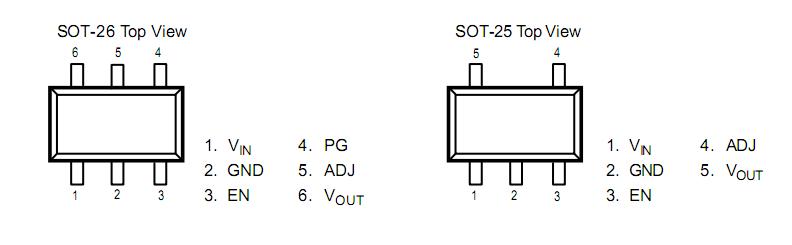

Pinout

Connection Diagram


Specifications

Parameter
Maximum
Unit
Input Voltage
8
V
Output Current
PD / (VIN - VO)
mA
Input, Output Voltage
GND - 0.3 to VIN + 0.3
V
ESD Classification
B



Description

The AME8804 family of positive, linear regulators fea-ture low quiescent current (30µA typ.) with low dropout voltage, making them ideal for battery applications. The space-saving SOT-26 and SOT-25 packages are attrac- tive for "Pocket" and "Hand Held" applications.

These rugged devices have both Thermal Shutdown,and Current Fold-back to prevent device failure under the "Worst" of operating conditions.

The SOT-26 version also features  a "Power Good" de-tector, which pulls low when the output is out of regula-tion.

The AME8804 is stable with an output capacitance of 2.2µF or greater.
