AME8806AEHA

Number of Outputs : 1
Mounting Style : SMD/SMT
Output Type : Fixed
Maximum Operating Temperature : + 85 C
Output Voltage : 3.3 V
Input Voltage MAX : 7 V
Load Regulation : 1 %
Package / Case : SOP-8
Output Current : 0.6 A
Dropout Voltage (Max) : 0.6 V at 600 mA


Features:

Very Low Dropout Voltage
Guaranteed 600mA Output
Accurate to within 1.5%
30µA Quiescent Current
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Noise Reduction Bypass Capacitor
Power-Saving Shutdown Mode
Space-Saving SO-8 Package
Factory Pre-set Output Voltages
Low Temperature Coefficient


Application

Instrumentation
Portable Electronics
Wireless Devices
Cordless Phones
PC Peripherals
Battery Powered Widgets
Electronic Scales

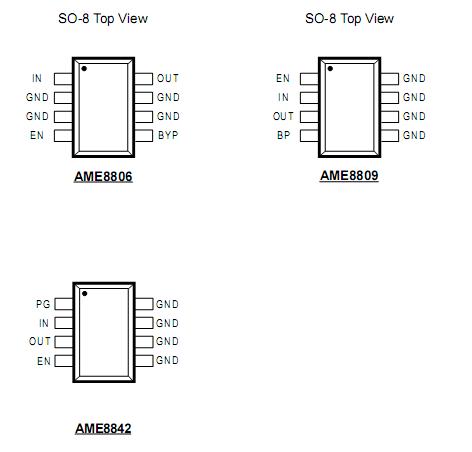

Pinout




Specifications

Parameter	Maximum	Unit
Input Voltage	8	V
Output Current	PD/ (VIN- VO)	A
Input, OutputVoltage	GND - 0.3 to VIN + 0.3	V
ESD Classification	B

Description

The AME8806AEHA of positive, linear regulators feature low quiescent current (30µA typ.) with low dropout voltage, making them ideal for battery applications.  The space-saving SO-8 package is attractive for"Pocket" and "Hand Held" applications.

These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the "Worst" of operating conditions. In applications requiring a low noise, regulated supply, place a 1000 pF capacitor between Bypass and ground. The AME8806AEHA is stable with an output capacitance of 2.2µF or greater.
