General Description
AME8816AEDV150 General Description
The AME8816 family of positive, linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.
Output voltages are set at the factory and trimmed to 1.5% accuracy.
These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the "Worst" of operating conditions.
In applications requiring a low noise, regulated supply, place a 1000pF capacitor between Bypass and Ground.
The AME8816 is stable with an output capacitance of 4.7µF or greater.
AME8816AEDV150 Maximum Ratings
| Parameter | Maximum | Unit |
| Input Voltage | 8 | V |
| Output Current | PD /VIN- VO | mA |
| Output Voltage | GND - 0.3 to VIN + 0.3 | V |
| ESD Classification | B |
AME8816AEDV150 Features
Very Low Dropout Voltage
Guaranteed 1.5A Output
Accurate to within 1.5%45µ
A Quiescent Current Typically
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Noise Reduction Bypass Capacitor (Fixed
Power-Saving Shutdown Mode
Space-Saving DDPAK-5 Package
6 Factory Pre-set Output Voltages
Low Temperature Coefficient
Adjustable Version
Guaranteed 1.5A Output
Accurate to within 1.5%45µ
A Quiescent Current Typically
Over-Temperature Shutdown
Current Limiting
Short Circuit Current Fold-back
Noise Reduction Bypass Capacitor (Fixed
Power-Saving Shutdown Mode
Space-Saving DDPAK-5 Package
6 Factory Pre-set Output Voltages
Low Temperature Coefficient
Adjustable Version
AME8816AEDV150 Typical Application
Instrumentation
Portable Electronics
Wireless Devices
PC Peripherals
Battery Powered Widgets
Portable Electronics
Wireless Devices
PC Peripherals
Battery Powered Widgets

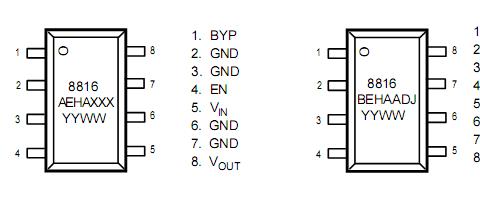

AME8816AEDV150 Connection Diagram
AME8816AEDV150
PDF/DataSheet Download
- Datasheet: AME8816AEDV150
- File Size: 115365 KB
- Manufacturer: AME [Analog Microelectronics]
- Click here to Download
