AMIS-14935

Features: • Low Operating Current: 120A Typical• Low Operating Voltage: 0.9V minimum• Gain Set by External Resistors• 3 output switch resistance settings: 48, 24 & 16• 5Vrms Input Referred NoiseApplication• Hearing aid applications• High impedance spea...

product image

AMIS-14935 Picture
See larger image
SeekIC No. : 004284772 Detail

AMIS-14935: Features: • Low Operating Current: 120A Typical• Low Operating Voltage: 0.9V minimum• Gain Set by External Resistors• 3 output switch resistance settings: 48, 24 & 16R...

AMIS-14935 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AMIS-14935
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low Operating Current: 120A Typical
• Low Operating Voltage: 0.9V minimum
• Gain Set by External Resistors
• 3 output switch resistance settings: 48, 24 & 16
• 5Vrms Input Referred Noise


Application

• Hearing aid applications
• High impedance speaker/transducer applications

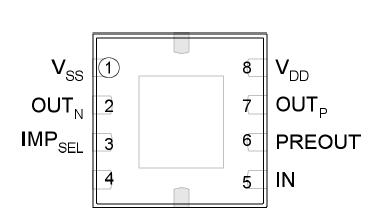

Pinout

Connection Diagram


Specifications

Input Logic Supply Voltage (VDD) ......................-0.3V to +3.0V
Operating Temperature Range .......................10°C to 55°C
Note: Exceeding these ratings could cause damage to the device. All voltages are with respect to Ground.
Currents are positive into, negative out of specified terminal.


Description

The AMIS-14935 (former MSC-LX1792) offers a patent pending, low-voltage, low-power and high efficiency amplifier for driving a high impedance speaker such as a hearing aid receiver or a headset. The AMIS-14935 consists of a pre-amplifier followed by a fixed gain class D amplifier.

The input resistor and feedback resistor is external in the AMIS-14935 making it possible to set the gain arbitrarily, up to approximately 40dB. The feedback resistor can also be potentiometer to facilitate volume control.
