Features:

Three Terminal Adjustable or Fixed Voltages*1.8V, 2.5V, 2.85V, 3.3V and 5.0V
Output Current of 1A
Operates Down to 1V Dropout
Line Regulation: 0.2% Max.
Load Regulation: 0.4% Max.
TO-220, TO-263, TO-252 and SOT-223 package available




Application

High Efficiency Linear Regulators
Post Regulators for Switching Supplies
5V to 3.3V Linear Regulator
Battery Chargers
Active SCSI Terminators
Power Management for Notebook
Battery Powered Instrumentation




Pinout

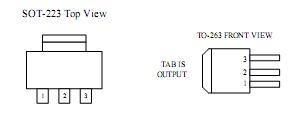

Connection Diagram Connection Diagram




Specifications

Power Dissipation Internally limited
Input Voltage 25V
OperatingJunction Temperature
AMS317A -40 to +125
AMS317 0 to +125
Storage temperature-65 to +150
Soldering information
Lead Temperature (10 sec) 300
Thermal Resistance
TO-220 packageJA= 50/W
TO-263 package JA= 30/W
TO-252 package JA= 80/W
SOT-223 package JA= 90/W*







Description

The AMS317 series of adjustable and fixed voltage regulators are designed to provide 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V at maximum output current, decreasing at lower load currents.

On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry.

The AMS317 devices are pin compatible with other three-terminal regulators and are offered in 3 lead TO-220 package, in the 2 & 3 Lead TO-263 (Plastic DD), in the TO-252 (D PAK) and in the low profile surface mount SOT-223 package.
