Purchase AN7399S, In-stock AN7399S From SeekIC.
MFG:PAN Package Cooled:SOP
- Table of contents:
AN7399S
-
Suppliers
DataSheet
General Description
AN7399S Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply voltage | VCC | 10.5 | V |
| Supply current | ICC | 3.0 | mA |
| Power dissipation | PD | 31.5 | mW |
| Operating ambient temperature * | Topr | -25 to +75 | °C |
| Storage temperature * | Tstg | -55 to +150 | °C |
AN7399S Features
• Fewer external parts (minimum parts count: 4)
• Wide operating supply voltage: 4.5 V to 10 V
• A sound source in the center position is necessarilypositioned in center regardless
of the spatializereffect value.
• Wide operating supply voltage: 4.5 V to 10 V
• A sound source in the center position is necessarilypositioned in center regardless
of the spatializereffect value.
AN7399S Typical Application
• Radio cassette recorder, stereo-sound TV andVCR, personal computer, active speaker

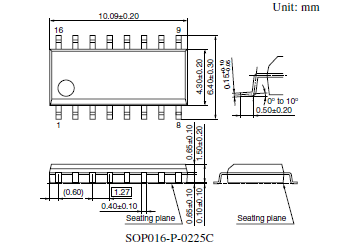

AN7399S Connection Diagram
AN7399S
PDF/DataSheet Download
- Datasheet: AN7399S
- File Size: 127534 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
