AN8001FHK
-
Suppliers
DataSheet
General Description
AN8001FHK Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Supply voltage | VCC | 14.2 | V |
| Supply current | ICC | - | mA |
| REF amplifier output source current | IOsource | -5 | mA |
| R0 amplifier output source current | IO-R0 | -15 | mA |
| R0 amplifier output sink current | IO+R0 | 0.1 | mA |
| R1 amplifier output source current | IO-R1 | -15 | mA |
| R1 amplifier output sink current | IO+R1 | 0.1 | mA |
|
R/2/3/4, L2/3/4 amplifier output source current |
IO-R2-L2 | -15 | mA |
|
R/2/3/4, L2/3/4 amplifier output sink current |
IO+R2-L2 | 15 | mA |
| L1 amplifier output source current | IO-L1 | - 0.05 | mA |
| L1 amplifier output sink current | IO+L1 | 15 | mA |
| L0 amplifier output source current | IO-L0 | - 0.05 | mA |
| L0 amplifier output sink current | IO+L0 | 15 | mA |
| COM amplifier output source current | IO-COM | -100 | |
| COM amplifier output sink current | IO+COM |
100 |
mA |
| Power dissipation | PD | 0 to + 70 | mW |
| Operating ambient temperature*1 | Topr | 0 to + 70 | °C |
| Storage temperature*1 | Tstg | -55 to + 150 | °C |
|
REF amplifier maximum load capacitance
|
COREF | 0.47 | mF |
|
R0/1/2/3/4, L4/3/2/1/0 amplifier maximum load capacitance |
COR/L | 0.1 | mF |
|
COM amplifier maximum load capacitance |
COCOM | 10 | mF |
AN8001FHK Features
· Incorporating a high precision reference voltage source : 1.23 V (typ.)
· Wide dynamic range of buffer amplifiers and it is possible to provide an output from VCC - 0.2 V (the
highest stage) to GND + 0.2 V (the lowest stage).
· Large COM-amplifier drive current : ±100 mA (max.)
· Wide dynamic range of buffer amplifiers and it is possible to provide an output from VCC - 0.2 V (the
highest stage) to GND + 0.2 V (the lowest stage).
· Large COM-amplifier drive current : ±100 mA (max.)
AN8001FHK Typical Application
· Gradation power supply source for LCDs

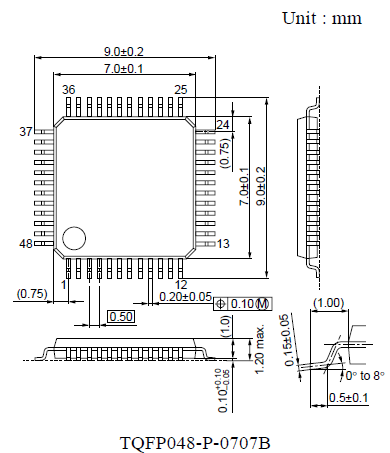

AN8001FHK Connection Diagram
AN8001FHK
