Part Number: AN8267S



MFG: N/A

Package Cooled: NA/

D/C: 09+



Urgent Purchase

AN8267S Maximum Ratings

Parameter Symbol Rating Unit
Supply voltage VCC 28.8 V
Supply current ICC 18 mA
Output current (t=0.1s ) IO (peak) 1.5 A
Circuit current (Inflow current) I2, I3 10 mA
Circuit voltage (Applied voltage) V2, V3, V6, V10 55 V
Power dissipation PD 735 Note 1) mW
Operating ambient temperature Topr 30 to + 80 °C
Storage temperature Tstg 55 to + 150 °C

AN8267S Features

• Operating supply voltage range ; VCC=9.6 to 27.6V(Operable at VCC=6V to 9.6V as well)
• 2-phase half-wave drive, built-in power transistor
• Built-in lock protective function and automatic reset function
• Built-in thermal protective circuit (operating temperature:150°C typ.)
• Built-in rotation display function

AN8267S Typical Application

For drive of brush-less DC fan motor

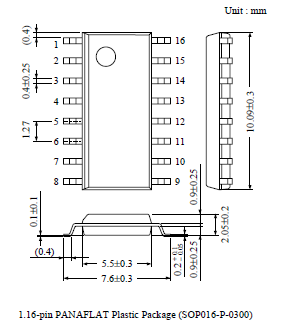

AN8267S Connection Diagram

AN8267S Connection Diagram

AN8267S datasheet

AN8267S
PDF/DataSheet Download

  • Datasheet: AN8267S
  • File Size: 54511 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download
