FET Feature: Logic Level Gate
Mounting Type: Surface Mount
Series: -
FET Type: 2 N-Channel (Dual)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Drain to Source Voltage (Vdss): 30V
Power - Max: 2W
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Current - Continuous Drain (Id) @ 25° C: 10A
Packaging: Tape & Reel (TR)
Input Capacitance (Ciss) @ Vds: 910pF @ 15V
Manufacturer: Alpha & Omega Semiconductor Inc
Rds On (Max) @ Id, Vgs: 13 mOhm @ 10A, 10V
Gate Charge (Qg) @ Vgs: 17nC @ 15V
Features: ·VDS (V) = 30V
·ID = 8 A (VGS = 10V)
·RDS(ON) < 15mΩ (VGS = 10V)
·RDS(ON) < 17mΩ (VGS = 4.5)

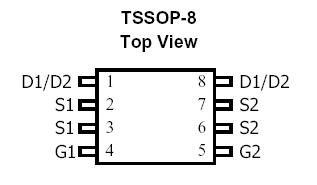

·RDS(ON) < 23mΩ (VGS = 2.5V)Pinout
Specifications
|
Parameter |
Symbol |
Maximum |
Units |
Drain-Source Voltage
Gate-Source Voltage |
VDS
VGS |
30
±12
|
V
V |
Continuous Drain
Current A |
TA=25°C
TA=70°C |
ID |
8
6 |
A |
| Pulsed Drain CurrentB |
IDM |
30 |
Power Dissipation A
|
TA=25°C
TA=70°C |
PD
|
1.5
1 |
W |
| Junction and Storage Temperature Range |
TJ, TSTG |
-55 to 150 |
°C |
DescriptionThe AO4832 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. Standard Product AO4832 is Pb-free (meets ROHS & Sony 259 specifications). AO4832L is a Green Product ordering option. AO4832 and AO4832L are electrically identical.
AO4832 Data Sheet
