AOD484

Series: -
FET Type: MOSFET N-Channel, Metal Oxide
Transistor Type: -
Current - Collector (Ic) (Max): -
Drain to Source Voltage (Vdss): 30V
Voltage - Collector Emitter Breakdown (Max): -
Vce Saturation (Max) @ Ib, Ic: -
Current - Collector Cutoff (Max): -
DC Current Gain (hFE) (Min) @ Ic, Vce: -
Frequency - Transition: -
Mounting Type: Surface Mount
Packaging: Digi-Reel®Alternate Packaging
FET Feature: Standard
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Gate Charge (Qg) @ Vgs: 21nC @ 10V

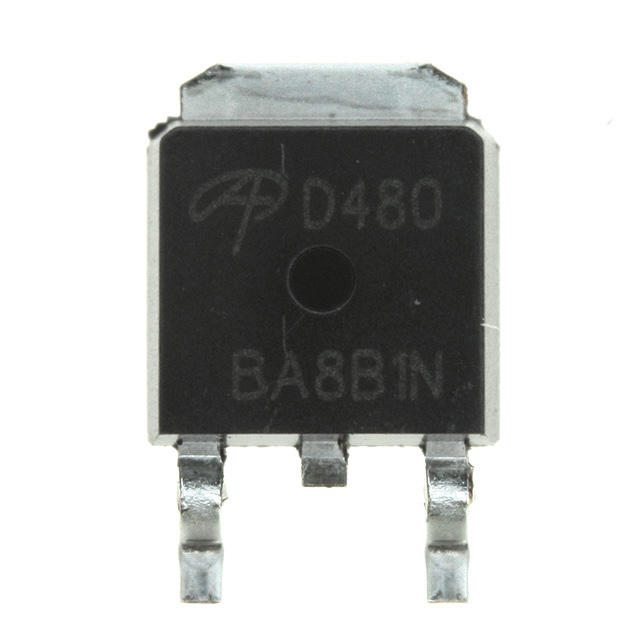

Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package: TO-252, (D-Pak)
Input Capacitance (Ciss) @ Vds: 1220pF @ 15V
Power - Max: 50W
Current - Continuous Drain (Id) @ 25° C: 25A
Manufacturer: Alpha & Omega Semiconductor Inc
Rds On (Max) @ Id, Vgs: 15 mOhm @ 20A, 10V


Parameters:

Technical/Catalog Information	AOD484
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	25A
Rds On (Max) @ Id, Vgs	15 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	1220pF @ 15V
Power - Max	50W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	21nC @ 10V
Package / Case	DPak,SC-63,TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AOD484 AOD484 785 1114 6 ND 78511146ND 785-1114-6
