AP0332

Features: ·Low drain to source leakage·Interfaces directly to TTL and CMOS logic·8 independent channels·Low crosstalk between channels·Low power dissipation·Freedom from secondary breakdown·Serial data input·On-chip decoder, latch with set and write disable circuitryApplication·High impedance/low ...

product image

AP0332 Picture
See larger image
SeekIC No. : 004286040 Detail

AP0332: Features: ·Low drain to source leakage·Interfaces directly to TTL and CMOS logic·8 independent channels·Low crosstalk between channels·Low power dissipation·Freedom from secondary breakdown·Serial d...

AP0332 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AP0332
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low drain to source leakage
·Interfaces directly to TTL and CMOS logic
·8 independent channels
·Low crosstalk between channels
·Low power dissipation
·Freedom from secondary breakdown
·Serial data input
·On-chip decoder, latch with set and write disable circuitry


Application

·High impedance/low leakage measurements for bare board testers
·High voltage piezoelectric transducer drivers
·High voltage electroluminescent panel drivers
·High voltage electrostatic array drivers
·General multi-channel driver arrays

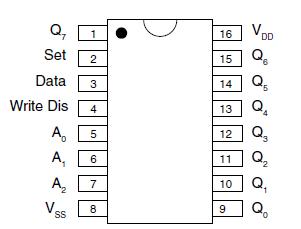

Pinout

Connection Diagram


Specifications

Off-state output voltage, VOO -320V
Logic supply voltage, VDD -0.5V to +15V
Logic input levels, all inputs -0.5V to VDD
Operating and storage temperature range -55°C to +150°C
Soldering temperature 2 300°C
Channel-to-channel crosstalk 10mV/V



Description

The Supertex AP0332 is an 8 P-Channel 320V common source power MOSFET array with a CMOS 8 bit addressable latch. The outputs are guaranteed to have very low leakage current. The outputs are addressed by logic inputs A0, A1, and A2. The addressed and unaddressed output can be turned on or off by the data, set, and write disable inputs.

The AP0332 is ideally suited for low leakage/high impedance measurements, providing excellent accuracy as well as resolution for automatic bare board test equipment and other applications.
