Part Number: AP07N70CP-A
Description: AP07N70 series are specially designed as main switching devices for universal 90~265VAC off-line AC/DC...
- Table of contents:
AP07N70CP-A
-
Suppliers
DataSheet
General Description
AP07N70CP-A General Description
AP07N70 series are specially designed as main switching devices for universal 90~265VAC off-line AC/DC converter applications.Both TO-220 type provide high blocking voltage to overcome voltage surge and sag in the toughest power system with the best combination of fast switching,ruggedized design and cost-effectiveness.
The TO-220 package is universally preferred for all commercial-industrial applications. The device is suited for switch mode power supplies ,DCAC converters and high current high speed switching circuits.
AP07N70CP-A Maximum Ratings
| Symbol | Parameter | Rating | Units |
| VDS | Drain-Source Voltage | 650 | V |
| VGS | Gate-Source Voltage | ±30 | V |
| ID@TC=25 | Continuous Drain Current, VGS @ 10V | 7 | A |
| ID@TC=100 | Continuous Drain Current, VGS @ 10V | 4.4 | A |
| IDM | Pulsed Drain Current1 | 18 | A |
| PD@TC=25 | Total Power Dissipation | 89 | W |
| Linear Derating Factor | 0.7 | W/ | |
| EAS | Single Pulse Avalanche Energy2 | 140 | mJ |
| IAR | Avalanche Current | 7 | A |
| EAR | Repetitive Avalanche Energy | 7 | mJ |
| TSTG | Storage Temperature Range | -55 to 150 | |
| TJ | Operating Junction Temperature Range | -55 to 150 |
AP07N70CP-A Features
Dynamic dv/dt Rating
Repetitive Avalanche Rated
Fast Switching
Simple Drive Requirement
RoHS Compliant
Repetitive Avalanche Rated
Fast Switching
Simple Drive Requirement
RoHS Compliant
AP07N70CP-A
PDF/DataSheet Download
- Datasheet: AP07N70CP-A
- File Size: 64957 KB
- Manufacturer: A-POWER
- Click here to Download
- ·AP01
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0116
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0116NA
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0116NB
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0116ND
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0116WG
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0120
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
- ·AP0120NA
- SUTEX [Supertex, Inc]
- 8 Channel Power MOSFET Array Monolithic N-channel Enchancement Mode
- 163311 KB
AP07N70CP-A Relative Products
AP07N70CF-A
AP07N70CF-A series are specially designed as main switching devices for universal 90~265VAC off-line AC/DC converter applications. TO-220FM type provide high blocking voltage to overcome voltage surge and sag in the toughest power system with the best combin...
AP07N70CF
AP07N70CF series are specially designed as main switching devices for universal 90~265VAC off-line AC/DC converter applications. TO-220FM & TO-220CFM type provide high blocking voltage to overcome voltage surge and sag in the toughest power system with t...

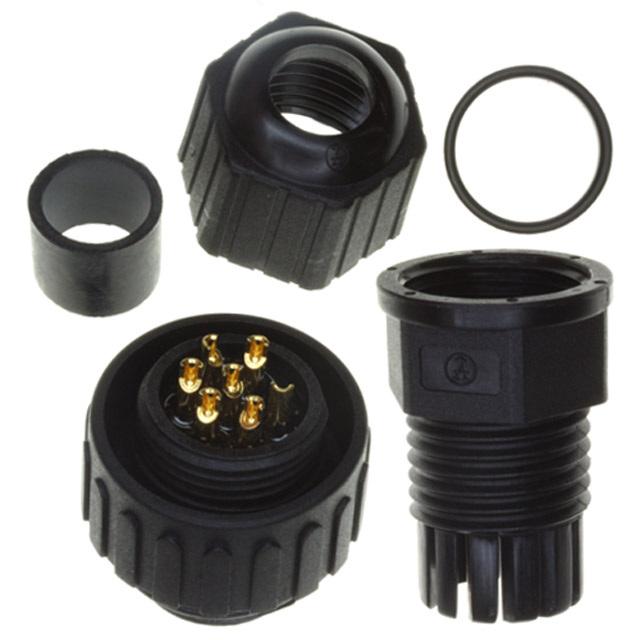

A-P07BMMA-S180-WP-R
CONN PWR CIR MALE 7POS

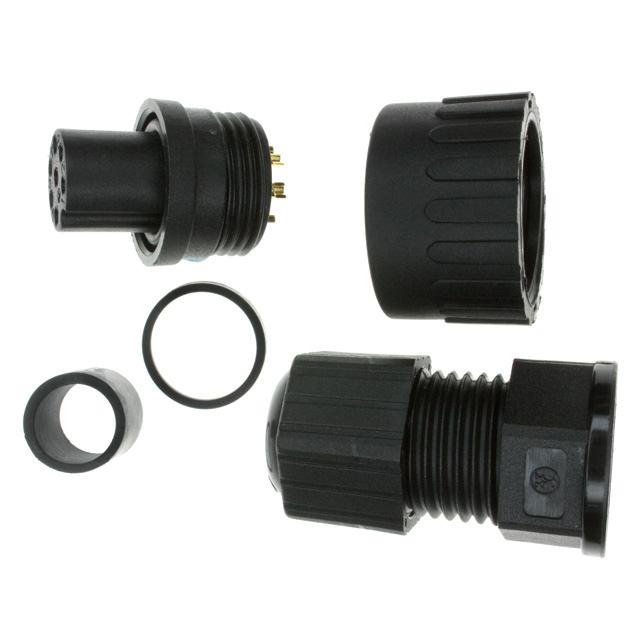

A-P07BFFA-S180-WP-R
CONN PWR CIR FEMALE 7POS

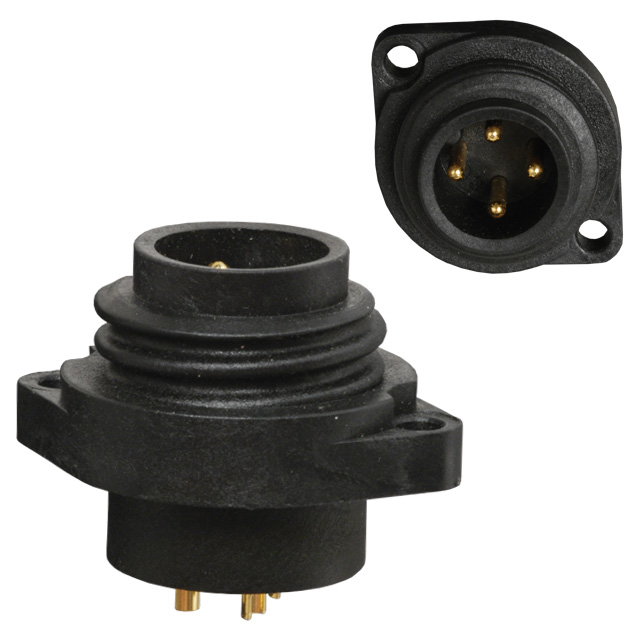

A-P04PMMS-SC-WP-R
CONN PWR CIR MALE 4POS

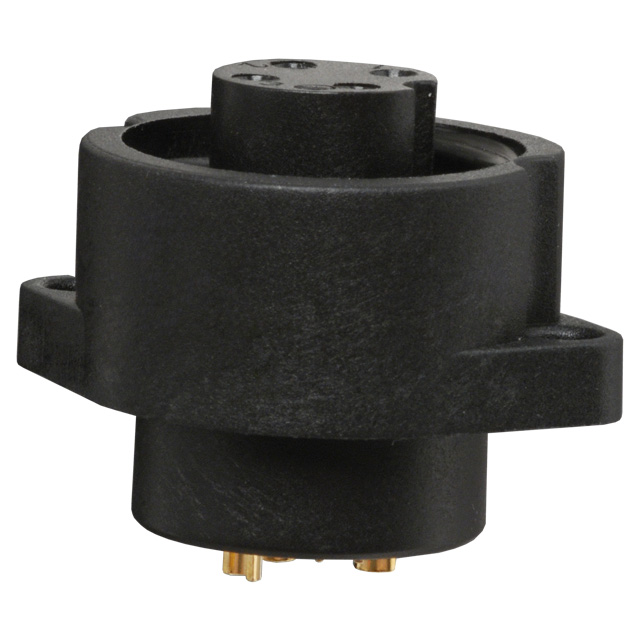

A-P04PFFS-SC-WP-R
