Part Number: AP1098
MFG: RFIC
D/C: 05+
Description: The AP1098 is a linear, low current power amplifier in ISM band utilizing InGaP /GaAs HBT ...
- Table of contents:
AP1098
-
Suppliers
DataSheet
General Description
AP1098 General Description
The AP1098 is a linear, low current power amplifier in ISM band utilizing InGaP /GaAs HBT process. It features a LOW current of 85mA, small signal gain of 25 dB, linear power of 19dBm and PAE of 28% for 802.11g under 3.3V. It can also be adjusted to smaller current(~60mA) with lower linear power (~16dBm). The AP1098 is housed in a 3 x 3 (mm), 16-pin, and QFN leadless package. The AP1098 is suitable to be used in portable, low current 802.11b and 802.11g WLAN applications.
AP1098 Features
• Ultra LOW Current (see below specs)
• Ultra High Efficiency:
PAE>28% @802.11g linear power
• Gain: 25 dB
Under Vc=3.3V, Vref=3V
* 11g
linear power: 19dBm
current: 85mA
* 11b
linear power: 23dBm
current: 165mA
• Low Idle Current: 25mA
• Ultra High Efficiency:
PAE>28% @802.11g linear power
• Gain: 25 dB
Under Vc=3.3V, Vref=3V
* 11g
linear power: 19dBm
current: 85mA
* 11b
linear power: 23dBm
current: 165mA
• Low Idle Current: 25mA
AP1098 Typical Application
• IEEE 802.11b/g WLAN system
• WLAN Portable Devices
• WLAN USB Devices
• Bluetooth and other 2.4 GHz ISM Band Application
• WLAN Portable Devices
• WLAN USB Devices
• Bluetooth and other 2.4 GHz ISM Band Application
AP1098
PDF/DataSheet Download
- Datasheet: AP1098
- File Size: 107087 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·AP10
- Analog IC
- 239928 KB
- ·AP1000A
- ASI [Advanced Semiconductor]
- SILICON PIN DIODE
- 13981 KB
- ·AP1000B-00
- ASI
- SILICON PIN DIODE CHIP
- 14470 KB
- ·AP1001
- TRANSISTOR | BJT | PNP | 450V V(BR)CEO | 15A I(C) | TO-3
- 64684 KB
- ·AP100B10
- LEM
- AC Current transducer
- 72369 KB
- ·AP100-B10
- LEM [LEM]
- AC Current transducer AP-B10
- 57748 KB
- ·AP100-B420L
- LEM [LEM]
- AC Current transducer AP-B420L
- 58324 KB
- ·AP1011
- TRANSISTOR | BJT | PNP | 350V V(BR)CEO | 15A I(C) | TO-3
- 64684 KB
AP1098 Relative Products
AP1093
The AP1093 is a linear, low current power amplifier in ISM band utilizing InGaP /GaAs HBT process. It features a low current of 130mA, high gain of 30 dB, linear power of 19dBm and PAE of 18% for 802.11g under 3.3V. The AP1093 is housed in a 3 x 3 (mm), 16-p...
AP1091
AP1091 is a linear, two stages power amplifier MMIC with high output power in 2.4GHz band utilizing InGaP/GaAs HBT process. With the excellent linearity performance, AP1091 delivers 26 dBm of linear output power (at 5V power supply)compliant with the IEEE802...

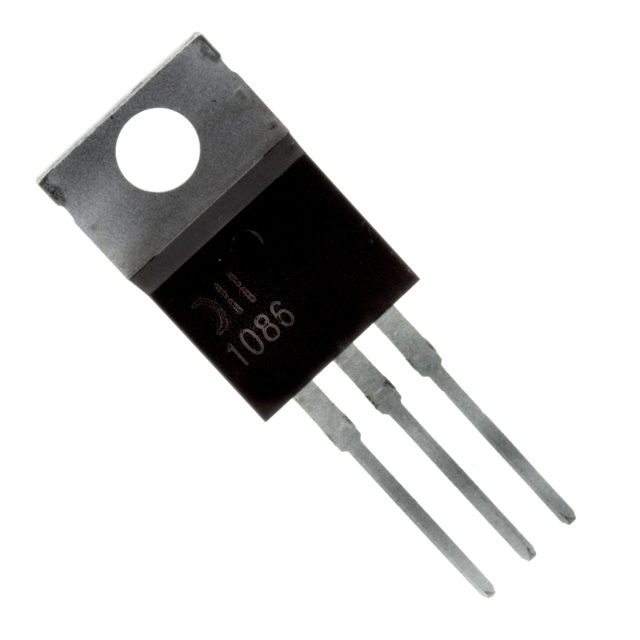

AP1086TL-U
