AP139

Features: • Very Low Dropout Voltage• Low Current Consumption: Typ. 45A, max. 60mA• Output Voltage: 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V3.3V, and 3.5V• Guaranteed 300mA Output• Input Range from 2.7 up to 5.5V• Thermal Shutdown• Current Limiting• Stabil...

product image

AP139 Picture
See larger image
SeekIC No. : 004286152 Detail

AP139: Features: • Very Low Dropout Voltage• Low Current Consumption: Typ. 45A, max. 60mA• Output Voltage: 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V3.3V, and 3.5V• Guaranteed 300mA Output&...

AP139 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AP139
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Very Low Dropout Voltage
• Low Current Consumption: Typ. 45A, max. 60mA
• Output Voltage: 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V
3.3V, and 3.5V
• Guaranteed 300mA Output
• Input Range from 2.7 up to 5.5V
• Thermal Shutdown
• Current Limiting
• Stability with Low ESR Capacitors
• Low Temperature Coefficient
• Lead-free Package: SOT25
• SOT25: Available in "Green" Molding Compound (No Br, Sb)
• Lead Free Finish/RoHS Compliant (Note 1)




Application

• Personal Communication Devices
• Home Electric/Electronic Appliances
• PC Peripherals
• Battery-Powered Devices

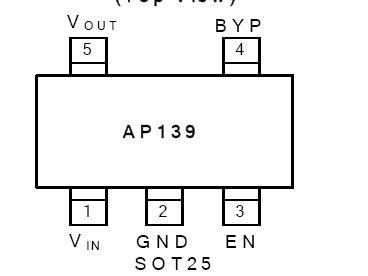

Pinout

Connection Diagram




Specifications

Symbol Parameter Rating Unit
VIN Input Voltage +6 V
IOUT Output Current PD/ (VIN-VO) mA
VOUT Output Vol GND - 0.3 to VIN+ 0.3 V
ESD Classification B
Top Operating Junction Temperature Range -40 to +12 ºC
TMJ Maximum Junction Tem 150 ºC
PD Internal Power Dissipation 250 mW


Part Number AP139
Channel 1
Output Current (A) 0.3
Dropout Voltage Max (V) 0.45
Quiescent Current typ (uA) 45
Operating Input Voltage (V) 2.7 ~ 5.5
Output Voltage (V) 1.5/ 1.8/ 2.0/ 2.5/ 2.8/ 3.0/ 3.3/ 3.5
Operating Ambient Temp Range (C) -40 to 85





Description

The AP139 is a positive voltage linear regulator utilizing CMOS technology. The features that include low quiescent current(45A typ.), low dropout voltage, and high output voltage accuracy, make it ideal for battery applications. EN input connected to the device will produce a low bias current. The space-saving SOT25 package is attractive for "pocket" and "hand held" applications.

AP139 has both thermal shutdown, and current limit protections to prevent device failure under the "worst" operating conditions.

In a low noise, regulated supply application, a 10nF capacitor is necessary to be placed in between Bypass and Ground. The AP139 is stable with a low ESR output capacitor of 1.0F or greater.
