Position: Home > Datasheet list > AP1 Series > Index A > AP1506-K5L-U
Electronica China

Purchase AP1506-K5L-U, In-stock AP1506-K5L-U From SeekIC.

MFG:Diodes Inc  Category:Integrated Circuits (ICs)

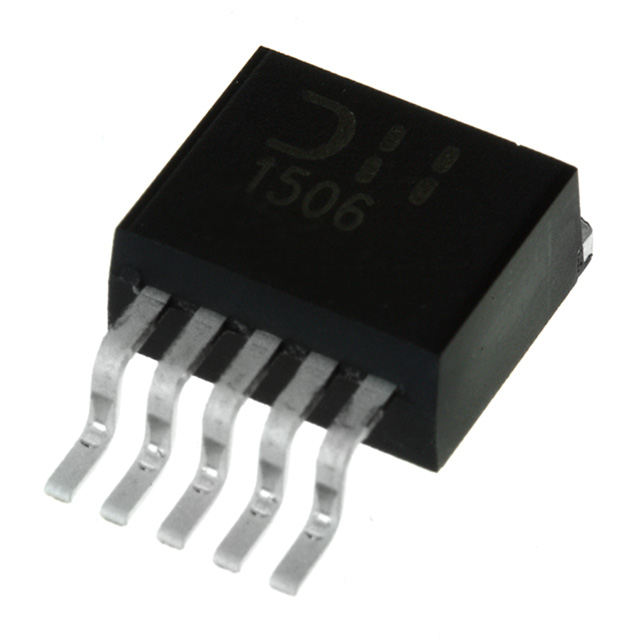

AP1506-K5L-U Product Image

AP1 Series Datasheet download

Five Points

Part Number: AP1506-K5L-U

Category: Integrated Circuits (ICs)

MFG: Diodes Inc





Descriptions: IC CONV DC/DC 3.0A ADJ TO263-5

Price Break

50

Unit Price

2.46400

Extended Price

123.20

(All prices are in USD) Prices for reference only
Urgent Purchase

AP1506-K5L-U General Description

IC CONV DC/DC 3.0A ADJ TO263-5

AP1506-K5L-U Parameters

Technical/Catalog InformationAP1506-K5L-U
VendorDiodes Inc
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input4.5 ~ 22 V
Voltage - Output1.23 ~ 18 V
Current - Output3A
Power - Output-
Package / CaseD²Pak, SMD-220, TO-263 (5 leads + tab)
PackagingTube
Internal Switch(s)Yes
SynchronousNo
Rds (On)-
Operating Temperature-20°C ~ 85°C
Frequency - Switching150kHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AP1506 K5L U
AP1506K5LU

AP1506-K5L-U datasheet

AP10
PDF/DataSheet Download

Find AP1506-K5L-U Suppliers
