Part Number: AP3101
Description: The AP3101 is a green PWM controller operating in current mode. It is specially designed for off-line ...
- Table of contents:
AP3101
-
Suppliers
DataSheet
General Description
AP3101 General Description
The AP3101 is a green PWM controller operating in current mode. It is specially designed for off-line ACDC adapter and battery charger applications where the needs for low standby power and better protection function are increasing.
The AP3101 features adjustable oscillator frequency in normal operation, which is done by an external resistor. It automatically switches to skip cycle mode when output power drops below a given level. The IC also features low start-up and operation current for its BiCMOS process.
The AP3101 provides comprehensive protection features including leading edge blanking, synchronized slope compensation, over-current, over-temperature and short circuit protection.
The AP3101 is available in 2 packages: SOIC-8 and DIP-8.
AP3101 Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit | |
|
Supply Voltage |
VCC |
30 |
V | |
|
Gate Output Current |
IO |
600 |
mA | |
|
Input Voltage to FB |
-0.3 to 7 |
V | ||
|
Input Voltage to SENSE |
-0.3 to 7 |
V | ||
|
Input Voltage to RI |
-0.3 to 7 |
V | ||
|
Input Voltage to ADJ |
-0.3 to 7 |
V | ||
|
Operating Junction Temperature |
150 |
oC | ||
|
Storage Temperature Range |
TSTG |
-65 to 150 |
oC | |
|
ESD (Human Body Model) |
4 |
kV | ||
|
ESD (Machine Model) |
400 |
V | ||
|
Power Dissipation at TA<25oC |
DIP-8 Package |
PD |
1350 |
mW |
|
SOIC-8 Package |
550 | |||
|
Thermal Resistance (Junction to Ambient) |
DIP-8 Package |
RJA |
83 |
oC/W |
|
SOIC-8 Package |
186 | |||
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum Ratings" for extended periods may affect device reliability.
AP3101 Features
` Green Current Mode PWM Controller
` Adjustable Skip Level
` Leading Edge Blanking (LEB)
` Cycle by Cycle Current Limit
` Built-in Short Circuit Protection
` Built-in Synchronized Slope Compensation
` Low Start-up/Operating Current: 30A/3mA
` Adjustable Oscillator Frequency
` Totem Pole Output Including Soft Driving
` Under-Voltage Lockout (UVLO)
` Accurate Over-Temperature Protection with Hysteresis
` Adjustable Skip Level
` Leading Edge Blanking (LEB)
` Cycle by Cycle Current Limit
` Built-in Short Circuit Protection
` Built-in Synchronized Slope Compensation
` Low Start-up/Operating Current: 30A/3mA
` Adjustable Oscillator Frequency
` Totem Pole Output Including Soft Driving
` Under-Voltage Lockout (UVLO)
` Accurate Over-Temperature Protection with Hysteresis
AP3101 Typical Application
· Off-line AC-DC Adapter
· Battery Charger Applications
· Battery Charger Applications

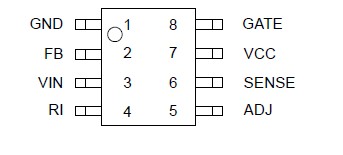

AP3101 Connection Diagram
AP3101
