AP393SG-U, US $ .23-.23, AP393SG-U DataSheet download, circuit diagram from SeekIC.com

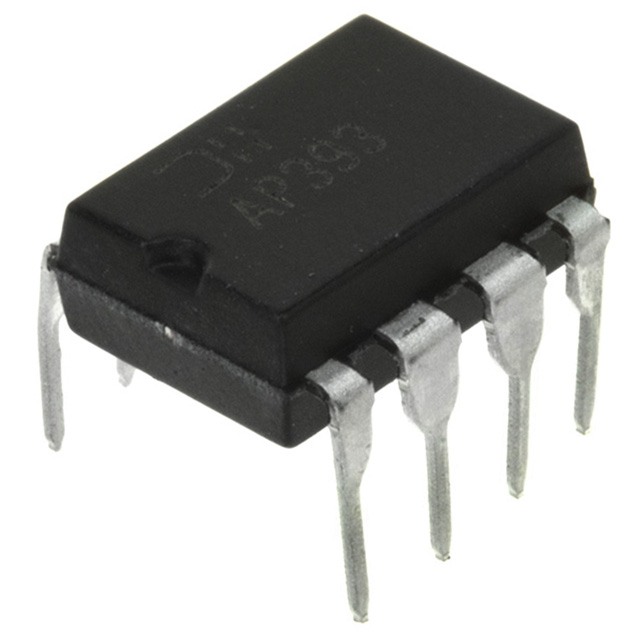

See larger image

SeekIC No. : 003537337 Detail

AP393SG-U: IC COMP DUAL LOW POWER 8-SOIC

AP393SG-U Data Sheet

US $ .23~.23 / Piece | Get Latest Price

Part Number:: AP393SG-U
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~100

Unit Price
$.23

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

AP393 evaluate
Features: - Wide supplyVoltage range: 2.0V to 36VSingle or dual supplies: ±1.0V to ±18V- Very low ...
AP393A evaluate
Specifications Part Number AP393A Supply Voltage Range (V) 2 ~ 36 Supply Current (mA) ...
AP393AM8G-13 evaluate
US $.2 - .37 / Piece

Switching Converters, Regulators & Controllers LO PWR/OFFSET VLTG 5V-36V 16mA LINEAR

Product Details

Quick Details

Series:	-	Package / Case :	SO-16
Manufacturer:	Diodes Inc	Type:	General Purpose
Number of Elements:	2	Output Type:	CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±):	2 V ~ 36 V, ±1 V ~ 18 V	Voltage - Input Offset (Max):	5mV @ 5V
Current - Input Bias (Max):	0.25µA @ 5V	Current - Output (Typ):	16mA @ 5V
Current - Quiescent (Max):	2.5mA	CMRR, PSRR (Typ):	-
Propagation Delay (Max):	-	Hysteresis:	-
Operating Temperature:	0°C ~ 70°C	Package / Case:	8-SOIC (0.154", 3.90mm Width)
Mounting Type:	Surface Mount

Description

Series: -
Type: General Purpose
CMRR, PSRR (Typ): -
Propagation Delay (Max): -
Hysteresis: -
Operating Temperature: 0°C ~ 70°C
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Number of Elements: 2
Voltage - Supply, Single/Dual (±): 2 V ~ 36 V, ±1 V ~ 18 V
Current - Input Bias (Max): 0.25µA @ 5V
Current - Quiescent (Max): 2.5mA
Voltage - Input Offset (Max): 5mV @ 5V
Manufacturer: Diodes Inc
Output Type: CMOS, DTL, ECL, MOS, Open-Collector, TTL
Current - Output (Typ): 16mA @ 5V

Parameters:

Technical/Catalog Information	AP393SG-U
Vendor	Diodes Inc
Category	Integrated Circuits (ICs)
Type	General Purpose
Output Type	CMOS, DTL, ECL, MOS, Open-Collector, TTL
Voltage - Supply	2 V ~ 36 V, ±1 V ~ 18 V
Number of Elements	2 - Dual
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AP393SG U AP393SGU
