Part Number: AP8842



MFG: APLUS

Package Cooled: DIP20



Description: aP8821 is a high quality voice synthesizer capable of varying playback duration. A proprietary ADPCM algorithm is used....


Urgent Purchase

AP8842 General Description


aP8821 is a high quality voice synthesizer capable of varying playback duration. A proprietary ADPCM algorithm is used. The audio message is stored in a 512K bits on-chip EPROM which can
store up to 21 seconds of voice data at 6 KHz sample rate.

The aP8821 eliminates the need of complicated circuitry in voice playback but still achieves high voice quality for different kind of sounds. Combinations in sections achieve longer playback duration.

A pair of PWM output pins, VOUT1 and VOUT2 provides direct drive to buzzer or speaker.

A current output pin, COUT, enables the device to drive a speaker through a low cost NPN transistor. No complex filtering or amplifier circuit is needed. An automatic ramp-down function eliminates undesired noise at the end of playback.

AP8842 Maximum Ratings

Symbol Rating Unit
VDD - VSS -0.5 ~ +5.0 V
VIN VSS - 0.3<VIN<VDD + 0.3 V
VOUT VSS <VOUT<VDD V
T (Operating) -10 ~ +60
T (Storage) -55 ~ +125 􀐺�􀐺

AP8842 Features

21 Sec Voice Length at 6 KHz
Combination of voice building blocks extends the duration of playback
Voice data re-use saves memory space
Maximum 14 voice groups
4 trigger pins, S1 to S4 for the 4 voice groups ( group1 ~ 4 )
SBT for sequential playblack for the rest of voice groups & CPU mode trigger
CPU trigger mode for all 14 voice groups
Holdable, Unholdable, Edge, Level triggering option
Debounce time : 21ms ( Key mode ) / 85us (CPU mode ) - 6K sampling rate
IRP interrupt pin for master reset
3 programmable Outputs for STP stop pulse, BUSY and LED
Built-in oscillator with a single external resistor to determine the sampling rate
Built-in D/A converter, EPROM
ADPCM data compression provides high sound quality
Optional POP noise elimination function
COUT pin drives speaker with a transistor
VOUT1 and VOUT2 drives buzzer or speaker directly
Auto-power down
2.4V 4.8V single power supply operation
Low standby current (<5uA at 3V)
Development Tools Support

AP8842 datasheet

AP8842
PDF/DataSheet Download

Find AP8842 Suppliers

  • ·AP8031AH
  •
  • 8-Bit Microcontroller
  • 335638 KB
  • AP8031AH Datasheet Download
  • ·AP8052AH
  •
  • 8-Bit Microcontroller
  • 335638 KB
  • AP8052AH Datasheet Download
  • ·AP8095BH
  •
  • 16-Bit Microcontroller
  • 1372354 KB
  • AP8095BH Datasheet Download
  • ·AP8096JC
  •
  • 16-Bit Microcontroller
  • 678468 KB
  • AP8096JC Datasheet Download
  • ·AP80C31BH
  •
  • 8-Bit Microcontroller
  • 597721 KB
  • AP80C31BH Datasheet Download
  • ·AP80C32-20
  •
  • 8-Bit Microcontroller
  • 1457846 KB
  • AP80C32-20 Datasheet Download
  • ·AP80C32-30
  •
  • 8-Bit Microcontroller
  • 1457846 KB
  • AP80C32-30 Datasheet Download
  • ·AP80C32-36
  •
  • 8-Bit Microcontroller
  • 1457846 KB
  • AP80C32-36 Datasheet Download

Related Part Number

AP8842 Relative Products

  • aP8821

    aP8821

    aP8821 is a high quality voice synthesizer capable of varying playback duration. A proprietary ADPCM algorithm is used. The audio message is stored in a 512K bits on-chip EPROM which canstore up to 21 seconds of voice data at 6 KHz sample rate.The aP8821 eli...

  • AP8802SPG-13

    AP8802SPG-13

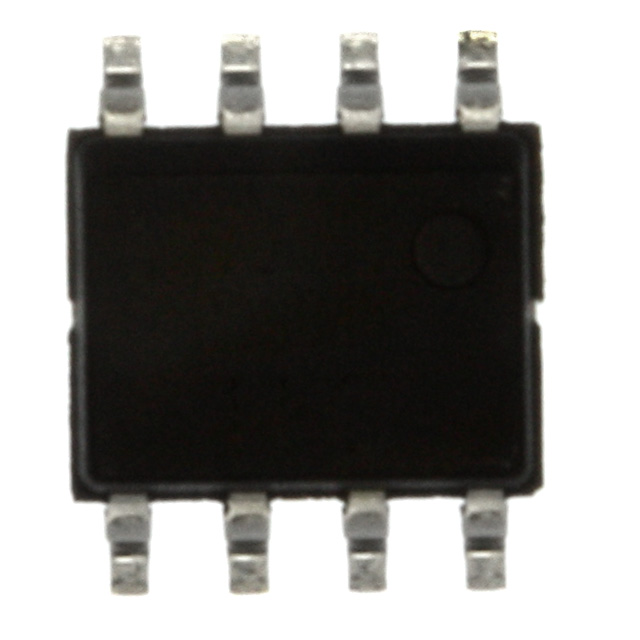

    IC CONV LED STEP DOWN 1A 8SOP
