AP9973M General Description


The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, lower on-resistance and cost-effectiveness.

AP9973M Maximum Ratings

Symbol Parameter Rating Units
VDS Drain-Source Voltage 60 V
VGS Gate-Source Voltage ±20 V
ID@TA=25 Continuous Drain Current3, VGS @ 10V 3.9 A
ID@TA=100 Continuous Drain Current3, VGS @ 10V 2.5 A
IDM Pulsed Drain Current1,2 20 A
PD@TA=25 Total Power Dissipation 2 W
  Linear Derating Factor 0.016 W/
TSTG Storage Temperature Range -55 to 150
TJ Operating Junction Temperature Range -55 to 150

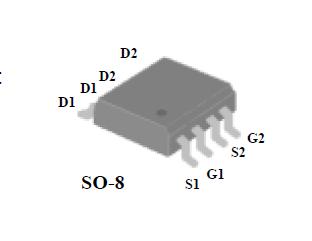

AP9973M Connection Diagram
