Lens Color/Style
:
Forward Current
:
Forward Voltage
:
LED Size
:
Packaging
: Reel
Viewing Angle
: 120 deg
Illumination Color
: RGB
Wavelength/Color Temperature
: 630 nm, 525 nm, 470 nm
Luminous Intensity
: 220 mcd, 150 mcd, 60 mcd
Features: ·LOW POWER CONSUMPTION.

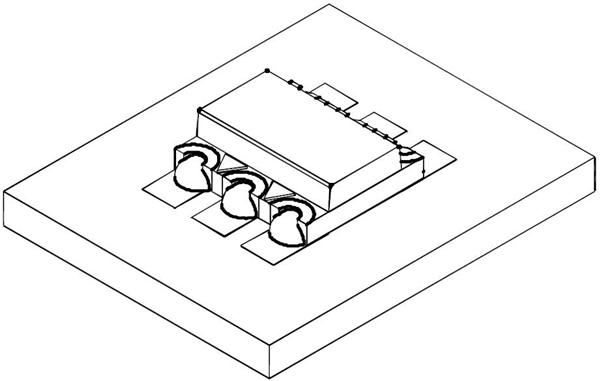

·3.2mmx3.6mm SMT LED, 1.1mm THICKNESS.
·ONE RED, ONE GREEN AND ONE BLUE CHIPS IN ONE PACKAGE.
·CAN PRODUCE ANY COLOR IN VISIBLE SPECTRUM, INCLUDING WHITE LIGHT.
·PACKAGE : 1000PCS / REEL.
·MOISTURE SENSITIVITY LEVEL : LEVEL 3.
·RoHS COMPLIANTSpecifications
| Parameter |
Hyper Red |
Mega Green |
Blue |
Units |
| Power dissipation |
75 |
120 |
120 |
mW |
| DC Forward Current |
30 |
30 |
30 |
mA |
| Peak Forward Current [1] |
185 |
100 |
100 |
mA |
| Reverse Voltage |
5 |
V |
| Operating Temperature |
-40°C To +85°C |
| Storage Temperature |
-40°C To +85°C |
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.DescriptionThe Hyper Red source color APF3236SURKVGAPBA devices are made with DH InGaAlP on GaAs substrate Light Emitting Diode.
The Green source color devices are made with InGaN on G-SiC Light Emitting Diode.
The Blue source color devices are made with InGaN on SiC Light Emitting Diode.
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs.
All APF3236SURKVGAPBA devices, equipment and machinery must be electrically grounded.
Parameters: | Technical/Catalog Information | APF3236SURKVGAPBA |
| Vendor | Kingbright Corp (VA) |
| Category | Optoelectronics |
| Color | Red, Green, Blue (RGB) |
| Lens Style/Size | Rectangle, 3.6mm x 2mm |
| Millicandela Rating | 150mcd Red, 150mcd Green, 60mcd Blue |
| Voltage - Forward (Vf) Typ | 1.95V Red, 3.2V Green, 3.2V Blue |
| Wavelength - Dominant | 635nm, 525nm, 470nm |
| Wavelength - Peak | 650nm, 520nm, 468nm |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Lens Type | Clear |
| Luminous Flux | 471 mlm Red, 471 mlm Green, 188 mlm Blue |
| Package / Case | 3.6mm x 3.2mm x 1.1mm |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | APF3236SURKVGAPBA
APF3236SURKVGAPBA
754 1090 1 ND
75410901ND
754-1090-1
|
APF3236SURKVGAPBA Data Sheet
