Product Details

Description

Features:

     -20V/-3.5A , R_DS(ON)=45m(typ.) @ V_GS=-4.5V
        -2.9A ,         R_DS(ON) =52m(typ.) @ V_GS =-3.0V
         -2.6A ,          R_DS(ON) =60m(typ.) @ V_GS=-2.7V
     Super High Dense Cell Design for Extremely
        Low R _DS(ON)     Reliable and Rugged
     SOP-8 Package

Application

Power Management in Notebook Computer , Portable Equipment and Battery Powered Systems.

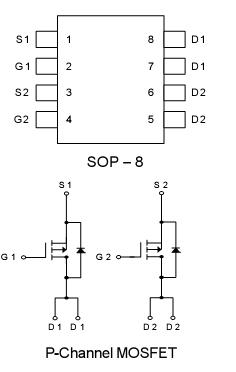

Pinout

Connection Diagram

Specifications

V_DSSDrain-Source Voltage ......................................-20V

V_GSSGate-Source Voltage .....................................±12V

I_D^* Maximum Drain Current Continuous........... .-3.5A
I_DM Maximum Drain Current Pulsed.................... -16A
