Product Details

Description

Features:

     -20V/-6A , R_DS(ON)=45m(typ.) @ V_GS=-4.5V
                        R_DS(ON) =65m(typ.) @ V_GS =-2.5V

     Super High Dense Cell Design for Extremely
        Low R _DS(ON)     Reliable and Rugged
     SOP-8 Package

Application

Power Management in Notebook Computer ,Portable Equipment and Battery Powered Systems.

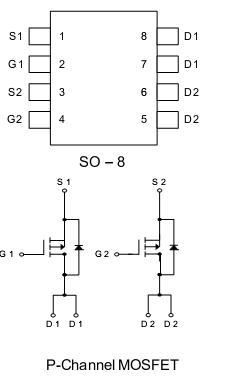

Pinout

Connection Diagram

Specifications

V_DSSDrain-Source Voltage ......................................-20V

V_GSSGate-Source Voltage .....................................±12V

I_D^* Maximum Drain Current Continuous................-6A
I_DM Maximum Drain Current Pulsed.................... -10A
