APM9966C

Features: SOP-8 20V/6A , RDS(ON) =19m(typ.) @ VGS =4.5V RDS(ON)=27m(typ.) @ VGS =2.5V TSSOP-8 20V/6A , RDS(ON) =21m(typ.) @ VGS =4.5V RDS(ON) =29m(typ.) @ VGS =2.5V Super High Dense Cell Design for Extremely Low RDS(ON) Reliable and Rugged SO-8 and TSSOP-8 PackagesApplicationPower Management in N...

product image

APM9966C Picture
See larger image
SeekIC No. : 004286972 Detail

APM9966C: Features: SOP-8 20V/6A , RDS(ON) =19m(typ.) @ VGS =4.5V RDS(ON)=27m(typ.) @ VGS =2.5V TSSOP-8 20V/6A , RDS(ON) =21m(typ.) @ VGS =4.5V RDS(ON) =29m(typ.) @ VGS =2.5V Super High Dense Cell Design for...

APM9966C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APM9966C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

     SOP-8
       20V/6A , RDS(ON) =19m(typ.) @ VGS =4.5V
                      RDS(ON)=27m(typ.) @ VGS =2.5V
       TSSOP-8
       20V/6A , RDS(ON) =21m(typ.) @ VGS =4.5V

                     RDS(ON) =29m(typ.) @ VGS =2.5V
     Super High Dense Cell Design for Extremely   Low RDS(ON)
     Reliable and Rugged
     SO-8 and TSSOP-8 Packages


Application

 Power Management in Notebook Computer , Portable Equipment and Battery Powered Systems.


Pinout

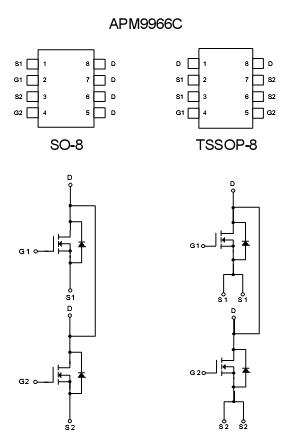

Connection Diagram


Specifications

Symbol Parameter Rating Unit
VDSS Drain-Source Voltage 20 V
VGSS Gate-Source Voltage ±10

ID*		 Maximum Drain Current Continuous 6 A
IDM Maximum Drain Current Pulsed 20
PD Maximum Power Dissipation TA =25°C SO-8 1.6 W
TSSOP-8 1.0
TA =100°C SO-8 0.625
TSSOP-8 0.4
TJ Maximum Junction Temperature 150 °C
TSTG Storage Temperature Range -55 to 150 °C
RjA Thermal Resistance Junction to Ambient 50 C/W
°
