Purchase APT15D120BCTG, In-stock APT15D120BCTG From SeekIC.

MFG:Microsemi-PPG  Category:Discrete Semiconductor Products

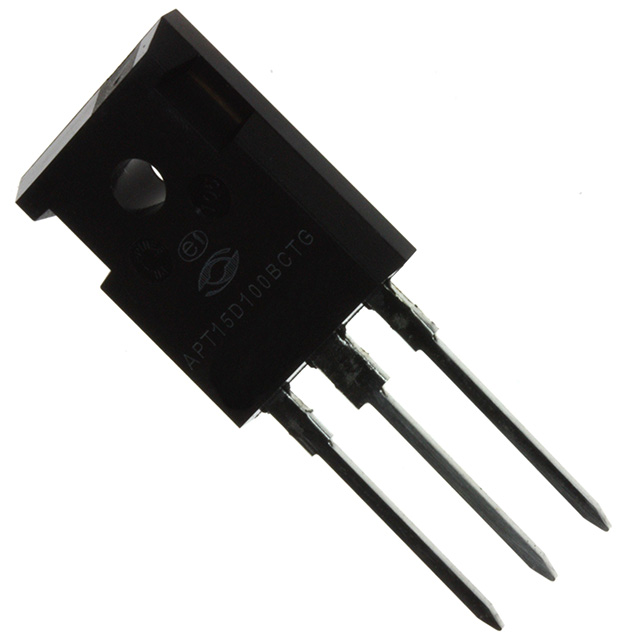

APT15D120BCTG Product Image

APT Series Datasheet download

Five Points

Part Number: APT15D120BCTG

Category: Discrete Semiconductor Products

MFG: Microsemi-PPG





Descriptions: DIODE ULT FAST 2X15A 1200V TO247

Price Break

100

Unit Price

5.37000

Extended Price

537.00

(All prices are in USD) Prices for reference only
Urgent Purchase

APT15D120BCTG General Description

DIODE ULT FAST 2X15A 1200V TO247

APT15D120BCTG Parameters

Technical/Catalog InformationAPT15D120BCTG
VendorMicrosemi-PPG
CategoryDiscrete Semiconductor Products
Diode Type Standard
Diode Configuration1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)1200V (1.2kV)
Current - Average Rectified (Io) (per Diode)15A
Voltage - Forward (Vf) (Max) @ If-
Current - Reverse Leakage @ Vr-
Reverse Recovery Time (trr)-
SpeedStandard Recovery >500ns, > 200mA (Io)
Mounting TypeThrough Hole, Radial
Package / CaseTO-247
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names APT15D120BCTG
APT15D120BCTG
