APT2012RWF/A, US $ .14-.14, APT2012RWF/A DataSheet download, circuit diagram from SeekIC.com

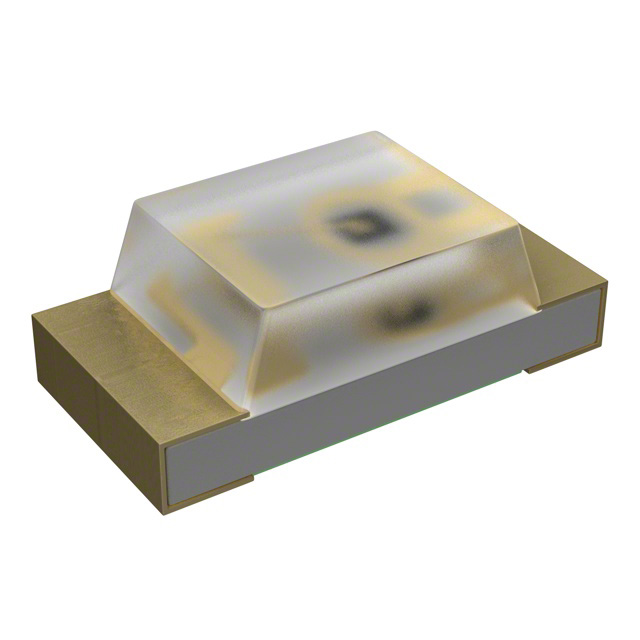

See larger image

SeekIC No. : 003614431 Detail

APT2012RWF/A: 2.0X1.25MM SMD CHIP LED LAMP 2SM

APT2012RWF/A Data Sheet

US $ .14~.14 / Piece | Get Latest Price

Part Number:: APT2012RWF/A
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~2000

Unit Price
$.14

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

APT200GN60B2G evaluate
US $8.27 - 13.78 / Piece

IGBT 600V 283A 682W TO247
APT200GN60J evaluate
US $12.42 - 20.71 / Piece

IGBT 600V 283A 682W SOT227
APT200GN60JDQ4 evaluate
US $13.73 - 22.89 / Piece

IGBT 600V 283A 682W SOT227

Product Details

Quick Details

Series:	-	Manufacturer:	Kingbright Corp
Color:	White, Cool	Millicandela Rating:	140mcd
Voltage - Forward (Vf) Typ:	3.2V	Current - Test:	20mA
Wavelength - Dominant:	6800K	Wavelength - Peak:	-
Viewing Angle:	120°	Lens Type:	Clear
Package / Case :	SOT-339	Lens Style/Size:	Rectangle with Flat Top, 1.3mm x 1.25mm
Package / Case:	0805 (2012 Metric)	Size / Dimension:	2.00mm L x 1.25mm W
Height:	0.75mm	Mounting Type:	Surface Mount

Description

Series: -
Current - Test: 20mA
Lens Type: Clear
Mounting Type: Surface Mount
Viewing Angle: 120°
Color: White, Cool
Wavelength - Peak: -
Voltage - Forward (Vf) Typ: 3.2V
Package / Case: 0805 (2012 Metric)
Size / Dimension: 2.00mm L x 1.25mm W
Packaging: Tape & Reel (TR)
Millicandela Rating: 140mcd
Lens Style/Size: Rectangle with Flat Top, 1.3mm x 1.25mm
Wavelength - Dominant: 6800K
Manufacturer: Kingbright Corp
Height: 0.75mm

Parameters:

Technical/Catalog Information	APT2012RWF/A
Vendor	Kingbright Corp
Category	Optoelectronics
Color	White
Lens Style/Size	Rectangle, 1.3mm x 1.25mm
Millicandela Rating	140mcd
Voltage - Forward (Vf) Typ	3.2V
Wavelength - Dominant	-
Wavelength - Peak	-
Current - Test	-
Viewing Angle	120°
Lens Type	Clear
Luminous Flux	520 mlm
Package / Case	806 (2012 metric)
Mounting Type	Surface Mount
Packaging	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	APT2012RWF A APT2012RWFA
