Part Number: APT39M60J



MFG: APT

Package Cooled: SOT-227

D/C: `06+(pb-free)

Description: Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET. A proprietary pla...


Urgent Purchase

APT39M60J General Description


Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET. A proprietary planar stripe design yields excellent reliability and manufacturability. Low switching loss is achieved with low input capacitance and ultra low Crss "Miller" capacitance. The intrinsic gate resistance and capacitance of the poly-silicon gate structure help control slew rates during switching, resulting in low EMI and reliable paralleling, even when switching at very high frequency. Reliability in flyback, boost, forward, and other circuits is enhanced by the high avalanche energy capability.

APT39M60J Maximum Ratings

Symbol Parameter Ratings Unit
ID Continuous Drain Current @ TC = 25°C 39 A
Continuous Drain Current @ TC = 100°C 24
IDM Pulsed Drain Current 1 210
VGS Gate-Source Voltage ±30 V
EAS Single Pulse Avalanche Energy 2 1580 mJ
IAR Avalanche Current, Repetitive or Non-Repetitive 28 A

APT39M60J Features

• Fast switching with low EMI/RFI
• Low RDS(on)
• Ultra low Crss for improved noise immunity
• Low gate charge
• Avalanche energy rated
• RoHS compliant

APT39M60J Typical Application

• PFC and other boost converter
• Buck converter
• Two switch forward (asymmetrical bridge)
• Single switch forward
• Flyback
• Inverters

APT39M60J datasheet

APT39M60J
PDF/DataSheet Download

Find APT39M60J Suppliers

  • ·APT1001
  • ADPOW [Advanced Power Technology]
  • Power MOS VI is a new generation of low gate charge, high voltage N-Channel enhancement mode power MOSFETs
  • 36626 KB
  • APT1001 Datasheet Download
  • ·APT1001R1AN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | 9.5A I(D) | TO-3
  • 214276 KB
  • APT1001R1AN Datasheet Download
  • ·APT1001R1AVR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs
  • 69982 KB
  • APT1001R1AVR Datasheet Download
  • ·APT1001R1BN
  • ADPOW [Advanced Power Technology]
  • N-CHANNEL ENHANCEMENT MODE HIGH VOLTAGE POWER MOSFETS
  • 53353 KB
  • APT1001R1BN Datasheet Download
  • ·APT1001R1BVFR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs.
  • 72323 KB
  • APT1001R1BVFR Datasheet Download
  • ·APT1001R1DN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | CHIP
  • 395046 KB
  • APT1001R1DN Datasheet Download
  • ·APT1001R1HN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | 9.5A I(D) | TO-258ISO
  • 227320 KB
  • APT1001R1HN Datasheet Download
  • ·APT1001R1HVR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs.
  • 68546 KB
  • APT1001R1HVR Datasheet Download

Related Part Number

APT39M60J Relative Products

  • APT38F80B2

    APT38F80B2

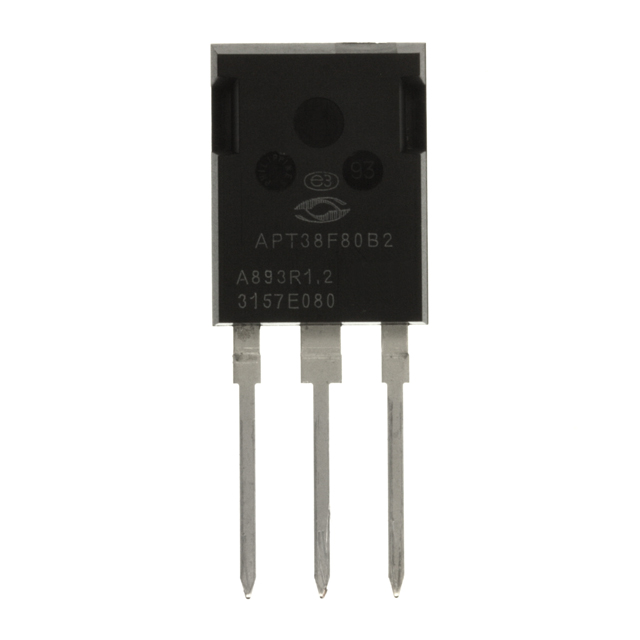

    MOSFET N-CH 800V 41A T-MAX

  • APT37F50B

    APT37F50B

    Power MOS 8™ APT37F50B is a high speed, high voltage N-channel switch-mode power MOSFET. This 'FREDFET' version has a drain-source (body) diode that has been optimized for high reliability in ZVS phase shifted bridge and other circuits through reduced ...

  • APT35GT120JU3

    APT35GT120JU3

    IGBT TRENCH BUCK CHOPPER SOT-227

  • APT35GP120JDQ2

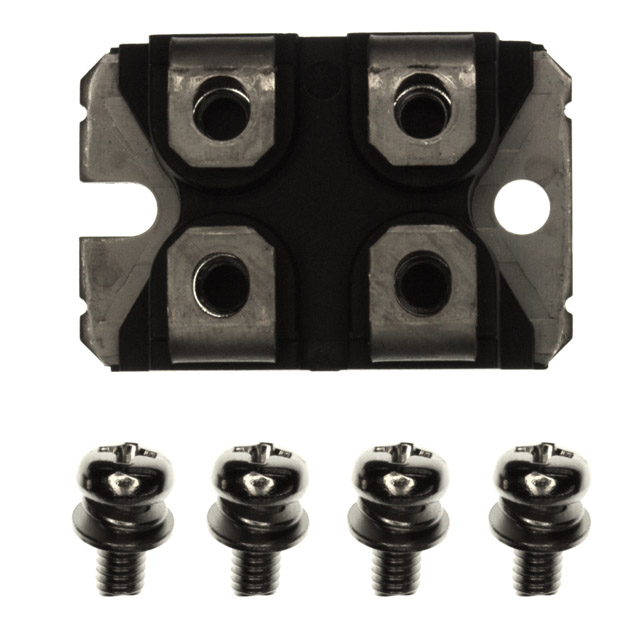

    APT35GP120JDQ2

    IGBT 1200V 64A SOT-227

  • APT35GP120J

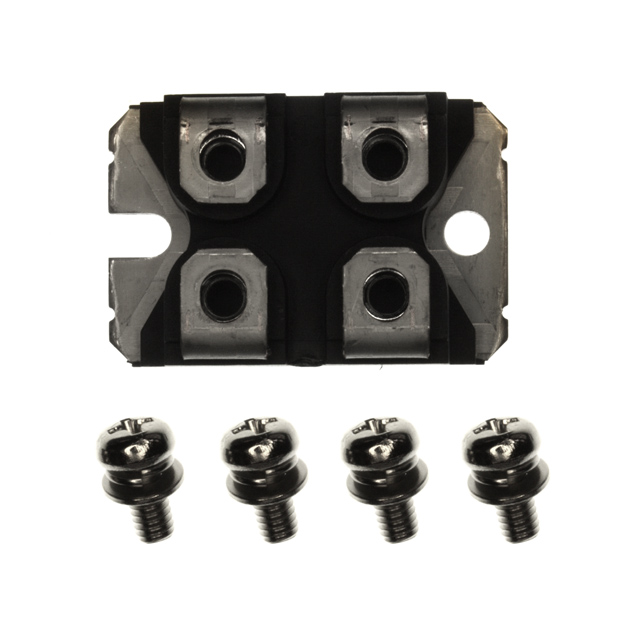

    APT35GP120J
