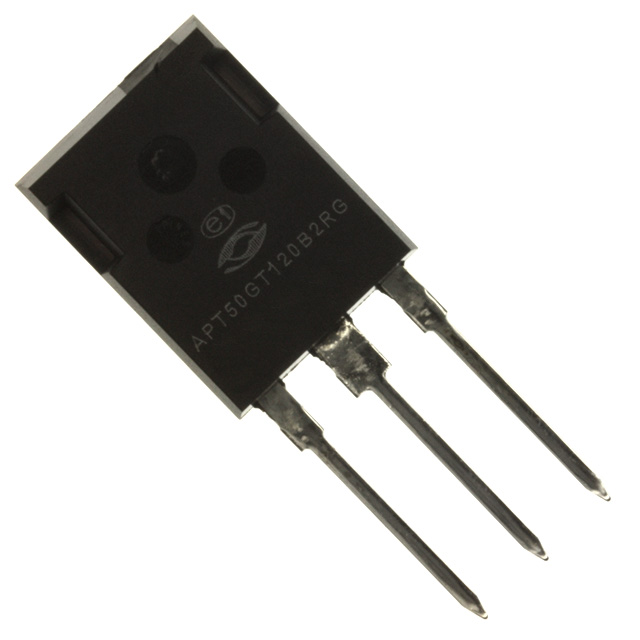

APT50GT120JRDQ2 Product Image

APT Series Datasheet download

Five Points

Part Number: APT50GT120JRDQ2



MFG: APT

Package Cooled: ISOTOP?/FONT>

D/C: `06+(pb-free)

Description: The Thunderblot IGBT® is a new generation of high voltage power IGBTs. Using Non- Punch Through Te...


Urgent Purchase

APT50GT120JRDQ2 General Description


The Thunderblot IGBT® is a new generation of high voltage power IGBTs. Using Non- Punch Through Technology, the Thunderblot IGBT® offers superior ruggedness and ultrafast switching speed.

APT50GT120JRDQ2 Maximum Ratings

Symbol Parameter Value Unit
VCES Collector-Emitter Voltage 1200 Volts
VGE Gate-Emitter Voltage ± 30 Volts
IC(1) Continuous Collector Current @ TC = 25°C 72 Amps
IC(1) Continuous Collector Current @ TC = 110°C 32 Amps
ICM(2) Pulsed Collector Current 1 150 Amps
SSOA Switching Safe Operating Area @ TJ = 150°C 150A @ 1200V
PD Total Power Dissipation 379 Watts
TL Max. Lead Temp. for Soldering: 0.063" from Case for 10 Sec. 300 °C
Tj
Tstg		 Operating and Storage Junction Temperature Range -55 to 150 °C

APT50GT120JRDQ2 Features

• Low Forward Voltage Drop
• High Freq. Switching to 50KHz
• Low Tail Current
• Ultra Low Leakage Current
• RBSOA and SCSOA Rated
• Intergrated Gate Resistor: Low EMI, High Reliability
