APT50M38JLL General Description


Power MOS 7TM is a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFETS. Both conduction and switching losses are addressed with Power MOS 7TM by significantly lowering RDS(ON) and Qg. Power MOS 7TM combines lower conduction and switching losses along with exceptionally fast switching speeds inherent with APT's patented metal gate structure.

APT50M38JLL Maximum Ratings

Symbol Parameter
APT50M38JLL
UNIT
VDSS Drain-Source Voltage
500
Volts
ID Continuous Drain Current @ TC = 25
91
Amps
IDM Pulsed Drain Current
364
VGS Gate-Source Voltage Continuous
±30
Volts
VGSM Gate-Source Voltage Transient
±40
PD Total Power Dissipation @ TC = 25
775
Watts
Linear Derating Factor
6.2
W/
TJ,TSTG Operating and StorageTemperature Range
-55 to 150
TL Lead Temperature: 0.063" from Case for 10 Sec.
300
IAR Avalanche Current(Repetitive and Non-Repetitive)
91
Amps
EAR Repetitive Avalanche Energy
50
mJ
EAS Single Pulse Avalanche Energy
3600

APT50M38JLL Features

• Lower Input Capacitance
• Increased Power Dissipation
• Lower Miller Capacitance
• Easier To Drive
• Lower Gate Charge, Qg
• Popular SOT-227 Package

APT50M38JLL datasheet

APT50M38JLL
PDF/DataSheet Download

  • Datasheet: APT50M38JLL
  • File Size: 62787 KB
  • Manufacturer: ADPOW [Advanced Power Technology]
  • Click here to Download

Find APT50M38JLL Suppliers

  • ·APT1001
  • ADPOW [Advanced Power Technology]
  • Power MOS VI is a new generation of low gate charge, high voltage N-Channel enhancement mode power MOSFETs
  • 36626 KB
  • APT1001 Datasheet Download
  • ·APT1001R1AN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | 9.5A I(D) | TO-3
  • 214276 KB
  • APT1001R1AN Datasheet Download
  • ·APT1001R1AVR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs
  • 69982 KB
  • APT1001R1AVR Datasheet Download
  • ·APT1001R1BN
  • ADPOW [Advanced Power Technology]
  • N-CHANNEL ENHANCEMENT MODE HIGH VOLTAGE POWER MOSFETS
  • 53353 KB
  • APT1001R1BN Datasheet Download
  • ·APT1001R1BVFR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs.
  • 72323 KB
  • APT1001R1BVFR Datasheet Download
  • ·APT1001R1DN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | CHIP
  • 395046 KB
  • APT1001R1DN Datasheet Download
  • ·APT1001R1HN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | 9.5A I(D) | TO-258ISO
  • 227320 KB
  • APT1001R1HN Datasheet Download
  • ·APT1001R1HVR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs.
  • 68546 KB
  • APT1001R1HVR Datasheet Download

Related Part Number

APT50M38JLL Relative Products

  • APT50M38JFLL

    APT50M38JFLL

    Power MOS 7TM APT50M38JFLL is a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFETS. Both conduction and switching losses are addressed with Power MOS 7TM by significantly lowering RDS(ON) and Qg. Power MOS 7TM combines lower c...

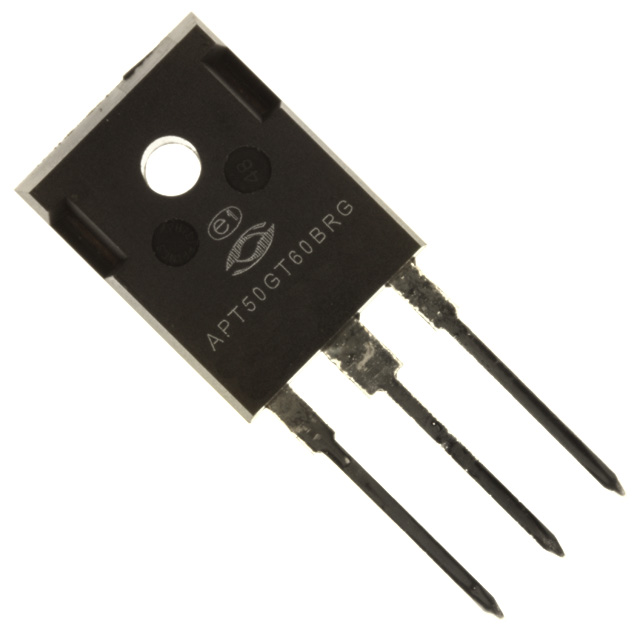

  • APT50GT60BRG

    APT50GT60BRG

    IGBT 600V 110A TO-247

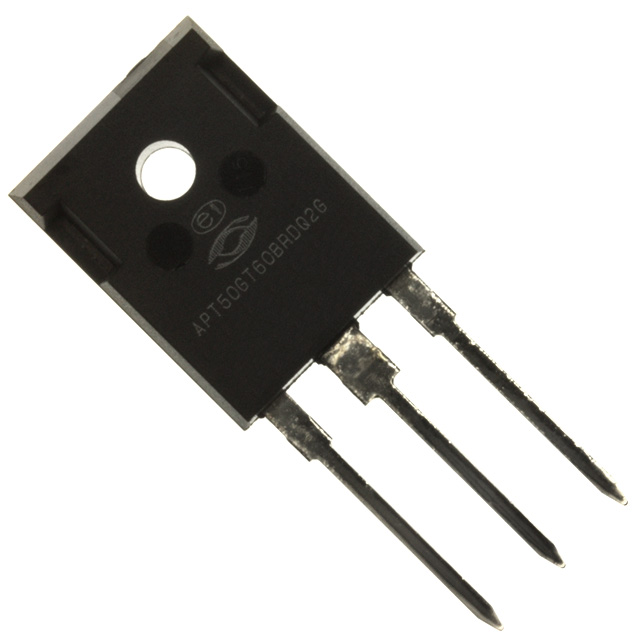

  • APT50GT60BRDQ2G

    APT50GT60BRDQ2G

    IGBT 600V 110A TO-247

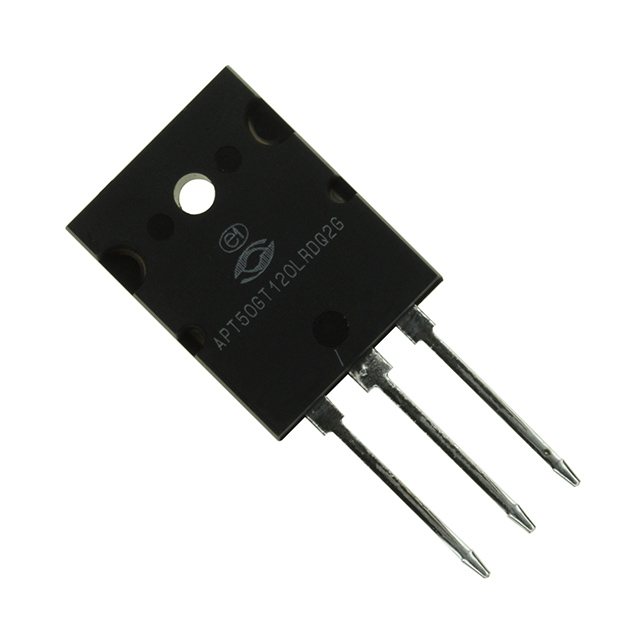

  • APT50GT120LRDQ2G
