Product Details

Description



Features:

· Non Punch Through (NPT) Fast IGBT®
- Low voltage drop
- Low tail current
- Switching frequency up to 50 kHz
- Soft recovery parallel diodes
- Low diode VF
- Low leakage current
- Avalanche energy rated
- RBSOA and SCSOA rated
· Kelvin emitter for easy drive
· Very low stray inductance
· High level of integration
· Internal thermistor for temperature monitoring


Application

· AC Motor control


Pinout

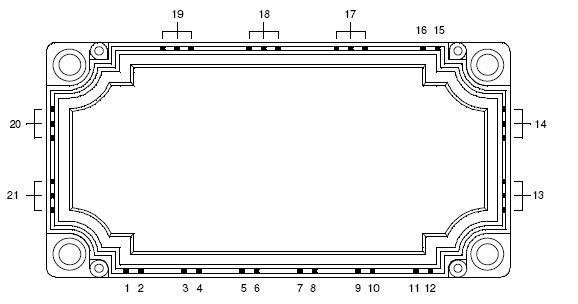

Connection Diagram


Specifications

Symbol Parameter Max ratings Unit
VCES Collector - Emitter Breakdown Voltage 600 V
IC Continuous Collector Current TC = 25°C 130 A
TC = 80°C 90
ICM Pulsed Collector Current TC = 25°C 230 A
VGE Gate Emitter Voltage ±20 V
PD Maximum Power Dissipation TC = 25°C 430 W
SCSOA Short Circuit Safe Operating Area Tj = 125°C 200A@520V
