Part Number: APU429
Description: The APU429 is an embedded high performance4-bit micro-computer with an on-chip LCD driver. It contains all the necessar...
- Table of contents:
APU429
-
Suppliers
DataSheet
General Description
APU429 General Description
The APU429 is an embedded high performance4-bit micro-computer with an on-chip LCD driver. It contains all the necessary functions in a single chip:4-bit parallel processing ALU, ROM, RAM, I/O ports,timer, clock generator, dual clock, RFC, EL-light,LCD driver, look-up table, watchdog timer and keyboard scanning. The instruction set includes not only 4-bit operation and manipulation instructions but also various conditional branch instructions and LCD driver data transfer instructions which are powerful and easy to use.The HALT function stops any internal operations other than the oscillator, divider and LCD driver in order to minimize the power dissipation.The STOP function stops all the clocks in the chip.
APU429 Maximum Ratings
| Name | Symbol | Rating | Unit |
| Maximum Supply Voltage | VDD1 | -0.3~+5.5 | V |
| VDD2 | -0.3~+5.5 | V | |
| VDD3 | -0.3~+8.5 | V | |
| VDD4 | -0.3~+8.5 | V | |
| Maximum Input Voltage | V1N1 | -0.3 to VDD1/2+0.3 | V |
| Maximum Output Voltage | VOUT1 | -0.3 to VDD1/2+0.3 | V |
| VOUT2 | -0.3 to VDD3+0.3 | V | |
| Maximum Operating Temperature | TOPG | 0 to +70 | |
| Maximum Storage Temperature | TSTG | -25 to +125 |
APU429 Features
Low power and low voltage operation
Powerful instruction set (150 instructions)
Memory capacity Instruction ROM capacity 4096 x 16 bits Index ROM capacity 256 x 8 bits Internal RAM capacity 384 or 256 x 4 bits
Input/Output ports of up to 20 pins
8-level subroutine nesting
Built-in LCD driver, 8 x 42 = 336 segments
Built-in EL driver, frequency or melody generator
Built-in Resistance-to-Frequency Converter
Built-in 2-channel 6/8-bit PWM output Built-in key strobe function(Shared with segment pin)
Built-in voltage doubler, halver, tripler quadrupler charge pump circuit
Two 6-bit programmable timers with programmable clock source
Watchdog timer
4 external & 3 internal interrupt resources External: INT, RFC, IOA/IOC/S port,keystrobe Internal: TM1, TM2, Predivider
Dual clock operation
HALT and STOP function
Powerful instruction set (150 instructions)
Memory capacity Instruction ROM capacity 4096 x 16 bits Index ROM capacity 256 x 8 bits Internal RAM capacity 384 or 256 x 4 bits
Input/Output ports of up to 20 pins
8-level subroutine nesting
Built-in LCD driver, 8 x 42 = 336 segments
Built-in EL driver, frequency or melody generator
Built-in Resistance-to-Frequency Converter
Built-in 2-channel 6/8-bit PWM output Built-in key strobe function(Shared with segment pin)
Built-in voltage doubler, halver, tripler quadrupler charge pump circuit
Two 6-bit programmable timers with programmable clock source
Watchdog timer
4 external & 3 internal interrupt resources External: INT, RFC, IOA/IOC/S port,keystrobe Internal: TM1, TM2, Predivider
Dual clock operation
HALT and STOP function

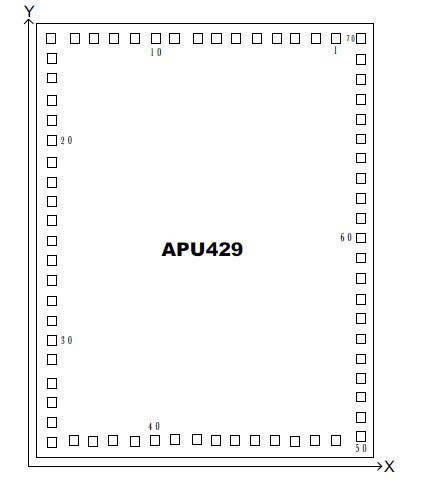

APU429 Connection Diagram
APU429
PDF/DataSheet Download
- Datasheet: APU429
- File Size: 449902 KB
- Manufacturer: APLUS [Apuls Intergrated Circuits]
- Click here to Download
