Part Number: APW3007
Description: The APW3007 provides the power control and protectionfor four output voltage in high-performance microprocessor&n...
- Table of contents:
APW3007
-
Suppliers
DataSheet
General Description
APW3007 General Description
The APW3007 provides the power control and protection for four output voltage in high-performance microprocessor and computer applications.
The APW3007 is designed to provide termination voltage VTT(1.25V) with ±1% accuracy. It integrates two PWM controllers , a linear regulator and a liear controller as well as the monitoring and protection function into a single package. One PWM controller regulates the microprocessor core voltage with a synchronous-rectified buck converter , while the second PWM controller supplies the I/O 3.3V power with a standard buck converter. The linear controller regulates power for GTL bus and the intermal 200mA regulator for clock driver circuits.
The APW3007 can provide in excess of 14A of output current for an on-board DC/DC converter via internal reference voltage. It can monitor all the output voltage , and a single Power Good signal is issued when the core is within 10% of the internal reference voltage and the other levels are above their undervoltage levels. Additional built-in over-voltage protection for the core output uses the lower MOSFET to prevent output voltage above 115% of the reference voltage. The PWM controller's over-current function monitor the output current by sensing the voltage drop across the upper MOSFET's RDS(ON) , eliminating the need for a current sensing resistor.
APW3007 Maximum Ratings
| Symbol | Parameter | Rating | Unit |
| V12 | Supply Voltage | 15 | V |
| VI , VO | Input , Output or I/O Voltage | GND -0.3 V to V12 +0.3 | V |
| TA | Operating Ambient Temperature Range | 0 to 70 | °C |
| TJ | Junction Temperature Range | 0 to 125 | °C |
| TSTG | Storage Temperature Range | -65 to +150 | °C |
| TS | Soldering Temperature | 300 ,10 seconds | °C |
APW3007 Features
• Provides 4 Regulated Voltages− Microprocessor Core , I/O , Clock Chip and GTL Bus
• Simple Single-Loop Control Design− Voltage-Mode PWM Control
• Fast Transient Response− High-Bandwidth Error Amplifier− Full 0% to 100% Duty Ratio
• Excellent Output Voltage Regulation− Core PWM Output : ±1% Over Temperature− I/O PWM Output : ±2% Over Temperature − Other Output : ±2.5% Over Temperature
• Power-Good Output Voltage Monitor
• Microprocessor Core Voltage Protection Against Shorted MOSFET
• Over-Voltage and Over-Current Fault Monitors
• Small Converter Size− Constant Frequency Operation− 200kHz Free-Running Oscillator ;
• Programmagle from 50kHz to 800kHz
• Simple Single-Loop Control Design− Voltage-Mode PWM Control
• Fast Transient Response− High-Bandwidth Error Amplifier− Full 0% to 100% Duty Ratio
• Excellent Output Voltage Regulation− Core PWM Output : ±1% Over Temperature− I/O PWM Output : ±2% Over Temperature − Other Output : ±2.5% Over Temperature
• Power-Good Output Voltage Monitor
• Microprocessor Core Voltage Protection Against Shorted MOSFET
• Over-Voltage and Over-Current Fault Monitors
• Small Converter Size− Constant Frequency Operation− 200kHz Free-Running Oscillator ;
• Programmagle from 50kHz to 800kHz
APW3007 Typical Application
• Motherboard Power Regulation for Computers
• Low-Voltage Distributed Power Supplies
• VGA Card Power Regulation
• Termination Voltage
• Low-Voltage Distributed Power Supplies
• VGA Card Power Regulation
• Termination Voltage

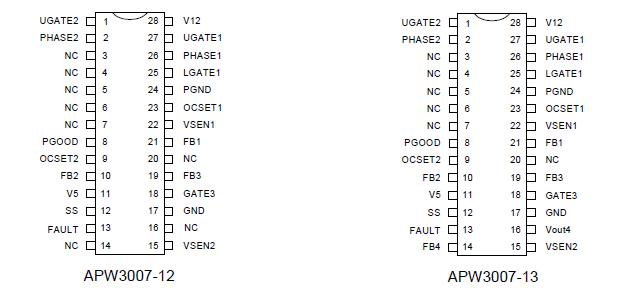

APW3007 Connection Diagram
APW3007
PDF/DataSheet Download
- Datasheet: APW3007
- File Size: 136860 KB
- Manufacturer: ANPEC [Anpec Electronics Coropration]
- Click here to Download
