APW7093

Features:

· Source/Sink 3A
· Up to 1MHz Switches Frequency
· Up to 94% Efficiency
· Internal PMOS/NMOS Switches- 70mW/40mW On-Resistance at VIN = 4.5V- 90mW/60mW On-Resistance at VIN= 3V
· ±1% Output Accuracy
· 1.1V to VINAdjustable Output Voltage
· 3V to +5.5V Input Voltage Range
· <1mA Shutdown Supply Current
· Programmable Constant-Off-Time Operation
· Thermal Shutdown
· Adjustable Soft-Start Inrush Current Limiting
·Output Short-Circuit Protection
· Lead Free Available (RoHS Compliant)




Application

· Motherboard
· Graphics Cards
· Cable or DSLModems, Set Top Boxes
· DSP Supplies
· Memory Supplies
· 5V Input DC-DC Regulators
· Distributed Power Supplies

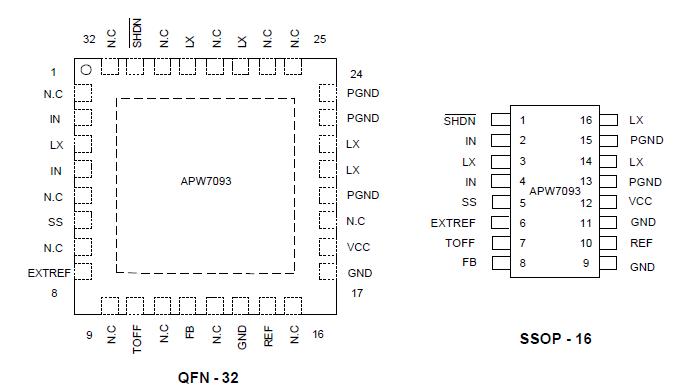

Pinout






Specifications

Parameter	Rating	Unit
Vcc to GND	-0.3 ~ +6	V
IN to Vcc	±0.3	V
GND to PGND	±0.3	V
SHDN , SS, FB, TOFF, VREF to GND	-0.3 ~ VCC+0.3	V
EXTREF to GND	-0.3 ~ VIN-1.7	V
Power dissipation; Part mount on 1in2 of 1oz copper; QFN-28	1.6	W
Power dissipation; Part mount on 1in2 of 1oz copper; SSOP-16	1	W
LX Current	-3.5 ~ +4.1	A
Operating Temperature Range	-40 ~ +85	°C
Junction Temperature	+150	°C
Storage Temperature Range	-65~+150	°C
Lead Temperature (soldering,10s)	+300	°C

Description

The APW7093 is a reversible energy flow, constantoff-time, pulse-width modulated (PWM), step-downDC-DC converter. It is ideal for use in notebook andsub-notebook computers that require 1.1V to 5Vactive termination power supplies. This device featuresan internal PMOS power switch and internalsynchronous rectifier for high efficiency and reducedcomponent count. The internal 90mW PMOS powerswitch and 60mWNMOS synchronous-rectifier switcheasily deliver continuous load currents up to 3A. TheAPW7093 accurately tracks an external reference
voltage, produces an adjustable output from 1.1V toVIN, and achieves efficiencies as high as 94%.The APW7093 uses a unique current-mode,constant-off-time, PWM control scheme that allowsthe output to source or sink current. This featureallows energy to return to the input power supply thatotherwise would be wasted. The programmableconstant-off-time architecturesetsswitchingfrequenciesup to 1MHz, allowing the user to optimize performancetrade-offs between efficiency, output switching noise,component size, and cost. TheAPW7093 features anadjustable soft-start to limit surge currents duringstartup, a 100% duty-cycle mode for low-dropoutoperation, and a low-power shutdownmode that disablesthe power switches and reduces supply current below1A. TheAPW7093 is available in a 32-pin QFN withan exposed backside pad or a 16-pin SSOP.
