APX1690

Features:

• 9-Set Voltage Monitors (4 Fixed Inputs for 7.0V,4.5V, 4.0V and 3.0V, 5 Adjustable Inputs with 1.5V Internal Reference)
• Input Voltage Range of 2~5V (Good for RTCBattery)
• Complementary Output to Drive 2N7002
• Outputs with Latch
• Quiescent Supply Current : 40A
• Quiescent Supply Current : 30A When Output Latch
• VREF=1.5V±2.0% Over Temp


Application

• Note Book Computer
• Multiple Supply System

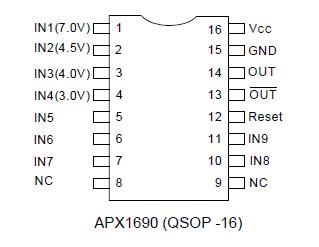

Pinout




Specifications

Symbol	Parameter	Rating	Unit
VCC	Input Voltage	7	V
IN1~IN9, Reset	All Input Pins	7	V
TJ	Operating Junction Temperature	-20 to 150	°C
TSTG	Storage Temperature	-65 to +150	°C
TS	Soldering Temperature (10 seconds)	260	°C
ESD	ESD Classification	2	KV

Description

The APX1690 is a precise 9-Set over voltage protector. The trigger voltages of IN1 to IN4 are internally set to detect the 7.0V, 4.5V, 4.0V and 3.0V, respectively. The trigger voltage of IN5 to IN9 can be set by using external resistor divider with the internal reference voltage (1.5V). The APX1690 offers 2% voltage setting accuracy over temp, and an ultra low ground current  40A(max). The ground current is reduced to 30A(max) when an over voltage happened and output is latched. Both complementary outputs (OUT andOUT ) are latched when an over voltage is detected in either input. An external active high on reset pin can be used to reset the latch. A compact package QSOP-16 is available for space saving purpose.
