Features:

· H Bridges Independent Control
· Channels Saturation Voltage Drive, One Channel Constant Voltage Drive and One Channel Constant Current Drive
· Support DSC Exposure/Shutter/Focus/Zoom Motor Driving
· Power Save Mode
· Lower Power Excitation Mode for Constant Current H Bridge
· Thermal Shutdown Protection
· Low Voltage Detection
· Lower Voltage Operation From 2.5V ~ 5.5V
· CMOS Process, Lower Power Consumption
· Compact Design for Small Size Package
· Lead Free Available (RoHS Compliant)


Application

· Digital Still Camera for Exposure/Shutter/ Focus/Zoom Motor Driving


Pinout

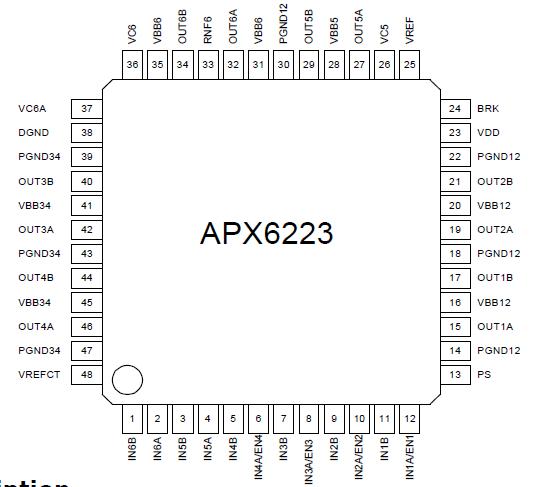

Connection Diagram


Specifications

Symbol
 Parameter
Rating
Unit
VDD
 Logic Supply Voltage
6.5
VBB
 Motor Supply Voltage
6.5
V
IO
 Peak Output Current (1ch ~ 6ch)
+-800
A
IO
 Continuous Output Current (1ch ~ 6ch)
+-500
mA
RT JA
 Thermal Resistance Junction to Ambient LQFP 48
125
V
TJ
 Junction Temperature
0 to 150
°C
TOP
 Operating Temperature Range
0 to 70
°C
TSTG
 Storage Temperature Range
-65 to +150
°C
TL
 Lead Temperature (Soldering, 10 second)
260
°C



Description

TheAPX6223 CMOS integrated circuit builds driving capability for Digital Still Camera Exposure/Shutter/ Focus/Zoom motor operation. Independent control inputs driveSaturation,Constant voltageand Constant current H bridge.

AdvancedCMOSprocessing is used to take advantage of low-voltage and low-power requirements. A power savingmoodcan optimize the energy savingin portable application. TheAPX6223 comes in aminiature 48-pin LQFP and TQFN packages
