General Description
AQT104 General Description
The Quik LDO™ AQT104 is a low dropout regulator that requires no external output capacitor for stability and it is stable with any capacitive load. It offers 0.5 Ohms pass device with 500mA load current. Its output voltage is preset to values between 2V and 3.3V with 1% accuracy and presents very good line and load regulation. It also includes output current limit with foldback characteristic and thermal shutdown. The removal of the output capacitor allows cost and board space reduction along with energy saving at power on and off. It is best suited for battery-powered equipments and in particular for cellular phones.
AQT104 Maximum Ratings
VIN Voltage ................................................7V
VIN Current...............................................1A
Operating Junction Temperature ...............150ºC
Lead Temperature (soldering 10 seconds).260ºC
Storage Temperature Range ......................-65ºC to +150ºC
VIN Current...............................................1A
Operating Junction Temperature ...............150ºC
Lead Temperature (soldering 10 seconds).260ºC
Storage Temperature Range ......................-65ºC to +150ºC
AQT104 Features
No need for output capacitor
500mA output current
150mV drop at 300mA
Preset output voltages (1% accuracy)
Low current consumption
Foldback output current limitation
Thermal Shutdown
Excellent load and line regulation
Low noise
Fast turn on and off
SOT23 package
500mA output current
150mV drop at 300mA
Preset output voltages (1% accuracy)
Low current consumption
Foldback output current limitation
Thermal Shutdown
Excellent load and line regulation
Low noise
Fast turn on and off
SOT23 package
AQT104 Typical Application
Cordless and cellular phones
Medical equipment
PDAs and battery-powered equipments
Medical equipment
PDAs and battery-powered equipments
AQT104 Connection Diagram
AQT104
PDF/DataSheet Download
- Datasheet: AQT104
- File Size: 212783 KB
- Manufacturer: ETC
- Click here to Download
- ·AQT504
- ETC [ETC]
- Current Regulator Diode SC70-3, SOT23-3, TO92 Packages
- 486971 KB
- ·AQT506
- ETC [ETC]
- Current Regulator Diode SC70-3, SOT23-3, TO92 Packages
- 486971 KB
AQT104 Relative Products
AQS610TSZ
RELAY OPTO 3CH 350V 100MA 16-SOP
-
AQS610TSX
RELAY OPTO 3CH 350V 100MA 16-SOP
-
AQS610TS
RELAY OPTO 3CH 350V 100MA 16-SOP

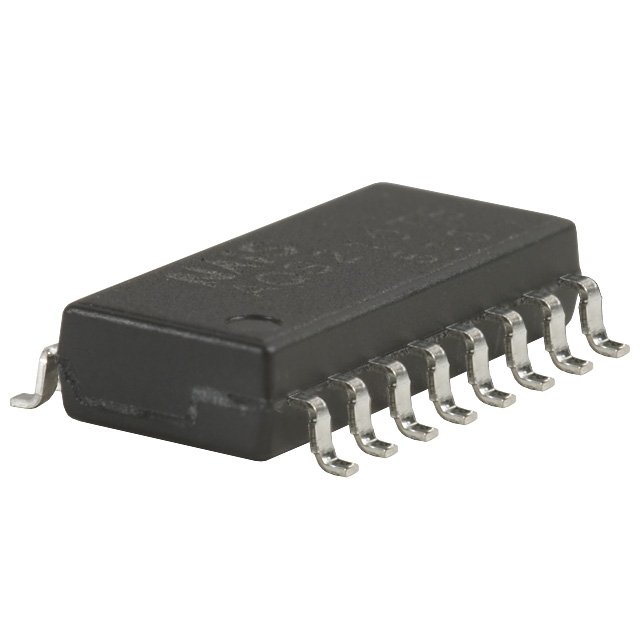

AQS225S
