AQZ202V
-
Suppliers
DataSheet
General Description
AQZ202V Maximum Ratings
| Item |
Symbol |
AQZ202V |
AQZ205V |
AQZ207V |
AQZ204V |
Remarks | ||
| Input | LED forward current |
IF |
50 mA |
|||||
| LED reverse voltage |
VR |
3 V |
||||||
| Peak forward current |
IFP |
1 A |
f = 100 Hz, Duty factor = 0.1% | |||||
| Power dissipation |
Pin |
75 mW |
||||||
| Output | Load voltage | AC |
VL |
17 V |
30 V |
60 V |
140 V |
Effective Vrms |
| DC |
22 V |
38 V |
85 V |
180 V |
||||
| Continuous load current (Peak AC) |
IL |
3.0 A |
2.0 A |
1.0 A |
0.5 A |
|||
| Peak load current |
Ipeak |
9.0 A |
6.0 A |
3.0 A |
1.5 A |
100 ms (1 shot), VL = DC | ||
| Power dissipation |
Pout |
1.6 W |
||||||
| Total power dissipation |
PT |
1.6 W |
||||||
| I/O isolation voltage |
Viso |
2,500 V AC |
||||||
| Temperature limits | Operating |
Topr |
40°C to +85°C |
Non-condensing at low temperatures | ||||
| Storage |
Tstg |
40°C to +100°C |
||||||
AQZ202V Features
1. Power PhotoMOS relay with internal varistor An internal varistor on the output side protects the output MOSFET from the reverse voltage from an external voltage surge or inductive load.
2. High capacity PhotoMOS relay Supports control of minute loads to a maximum 3.0 A. Suitable for output control.
3. Supports both AC and DC Bi-directional control so there is no need to differentiate according to the load as in conventional SSR's.
4. Can be placed on-board the 4-unit relay (power photoMOS relay type)
5. Ideal for inductive loads Ideal for inductive loads such as motors, solenoids, and electro-magnetic contactors.
6. High sensitivity, low ON resistance Can control a maximum 3.0 A load with a 5 mA input current. Low On resistance of 0.18 (AQZ202V).
7. Compact slim-type 4-pin SIL (W) 3.5*(L) 21.0*(H) 12.5 mm (W) .138*(L) .827*(H) .492 inch . The compact 73.5mm2 size of the 4-pin SIL package allows high density mounting.
8. Sockets also available
9. Promoting the CE making (Please inquire for further details.)
2. High capacity PhotoMOS relay Supports control of minute loads to a maximum 3.0 A. Suitable for output control.
3. Supports both AC and DC Bi-directional control so there is no need to differentiate according to the load as in conventional SSR's.
4. Can be placed on-board the 4-unit relay (power photoMOS relay type)
5. Ideal for inductive loads Ideal for inductive loads such as motors, solenoids, and electro-magnetic contactors.
6. High sensitivity, low ON resistance Can control a maximum 3.0 A load with a 5 mA input current. Low On resistance of 0.18 (AQZ202V).
7. Compact slim-type 4-pin SIL (W) 3.5*(L) 21.0*(H) 12.5 mm (W) .138*(L) .827*(H) .492 inch . The compact 73.5mm2 size of the 4-pin SIL package allows high density mounting.
8. Sockets also available
9. Promoting the CE making (Please inquire for further details.)
AQZ102D
PDF/DataSheet Download
- Datasheet: AQZ102D
- File Size: 91477 KB
- Manufacturer: Nais(Matsushita Electric Works)
- Click here to Download
- ·AQZ205
- HALBLEITER RELAIS MINIATUR PHOTMOS 100V
- 83964 KB
- ·AQZ205V
- Nais(Matsushita Electric Works)
- POWER PhotoMOS RELAYS with Internal Varistor
- 88490 KB
- ·AQZ207V
- Nais(Matsushita Electric Works)
- POWER PhotoMOS RELAYS with Internal Varistor
- 88490 KB
- ·AQZ262
- NAIS [Nais(Matsushita Electric Works)]
- POWER PhotoMOS RELAYS (High capacity type)
- 72556 KB
- ·AQZ404
- ETC [ETC]
- POWER PhotoMOS RELAYS 1-channel(Form B)Type
- 75372 KB
AQZ202V Relative Products
AQZ202D
The AQZ202D is designed as power photoMOS relays (voltage sensitive type).AQZ202D has six features. The first one is a voltage sensitive power photo-MOS relay. The second one is wide range of input voltages. The third one is large capacity photoMOS relay. Th...
AQZ202
RELAY OPTO AC/DC 60V 3000MA 4SIP
-
AQZ107D
RELAY OPTO DC 200V 1.1A 4-SIP
-
AQZ107
RELAY OPTO DC 200V 1.3A 4-SIP
-
AQZ105D
RELAY OPTO DC 100V 2.3A 4-SIP

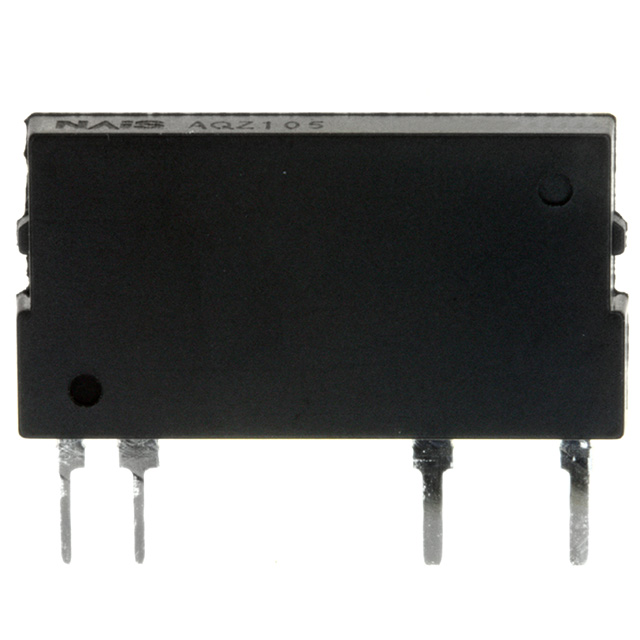

AQZ105
