AR5000
-
Suppliers
DataSheet
General Description
AR5000 Maximum Ratings
| RATING | SYMBOL | AR 5000 |
AR 5001 |
AR 5002 |
AR 5004 |
AR 5006 |
AR 5008 |
AR 5010 |
UNIT |
| Maximum Repetitive Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | Volts |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
| Average Rectified Forward Current Tc = 150°C | IF(AV) | 50 | Amps. | ||||||
| Peak Forward Surge Current Single half sine wave superimposed on rated load (JEDEC Method) |
IFSM | 500 | Amps. | ||||||
| Maximum Forward Voltage at IF = 25 Amps. | VF | 1.0 | Volt | ||||||
| Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C | IR | 5.0 | mA | ||||||
| IR(H) | 1.0 | mA | |||||||
| Thermal Resistance (Note 1) | Rq JC | 0.8 | °C/W | ||||||
| Junction Temperature Range | TJ | - 65 to + 175 | °C | ||||||
| Storage Temperature Range | TSTG | - 65 to + 174 | °C | ||||||
AR5000 Features
* High current capability
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
* High surge current capability
* High reliability
* Low reverse current
* Low forward voltage drop
AR5000
PDF/DataSheet Download
- Datasheet: AR5000
- File Size: 30518 KB
- Manufacturer: EIC [EIC discrete Semiconductors]
- Click here to Download
- ·AR50
- Taiwan Semiconductor Company, Ltd
- 50.0 AMPS. High Current Button Rectifiers
- 207494 KB
- ·AR5000L
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30673 KB
- ·AR5001
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30518 KB
- ·AR5001L
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30673 KB
- ·AR5002
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30518 KB
- ·AR5002L
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30673 KB
- ·AR5004
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30518 KB
- ·AR5004L
- EIC [EIC discrete Semiconductors]
- AUTOMOTIVE RECTIFIER DIODES
- 30673 KB
AR5000 Relative Products
AR50

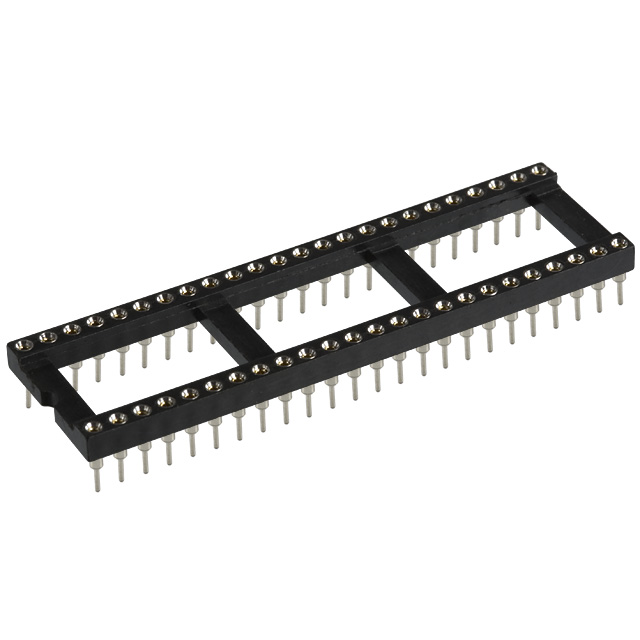

AR48-HZL-TT-R
IC SOCKET MACH PIN ST 48POS GOLD

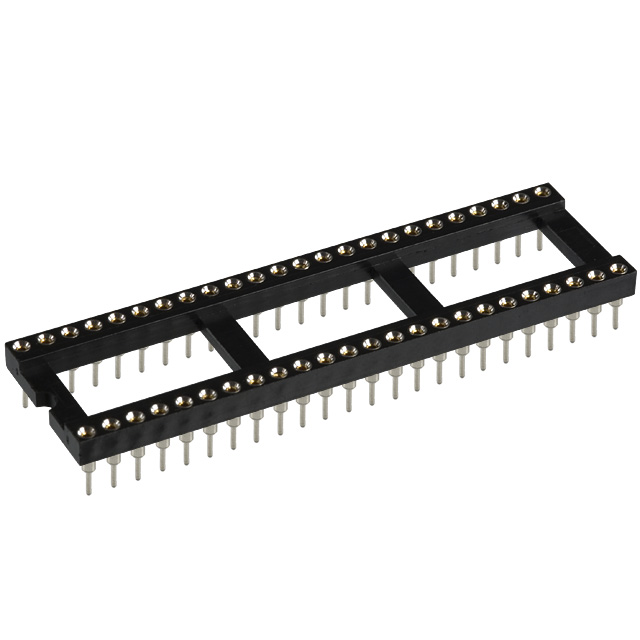

AR48-HZL/07-TT-R
IC SOCKET .600 48 DIP GOLD
-
AR48-HZL/07-TT
IC SOCKET .600 48 DIP GOLD

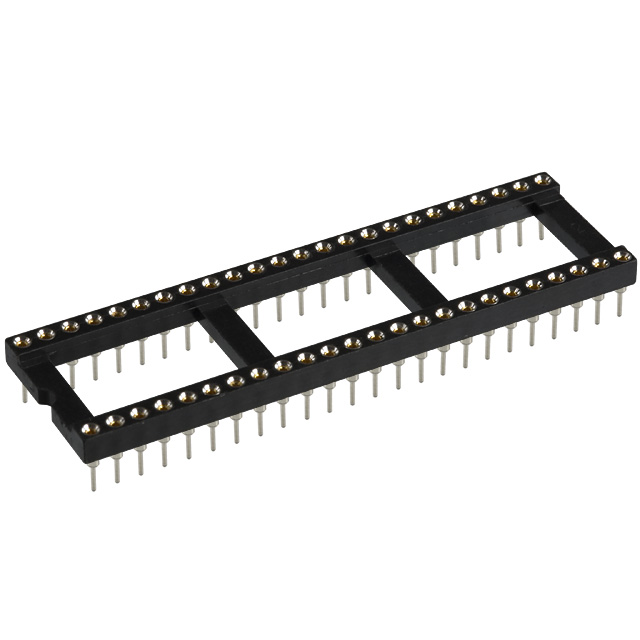

AR48-HZL/01-TT-R
