ARA2005

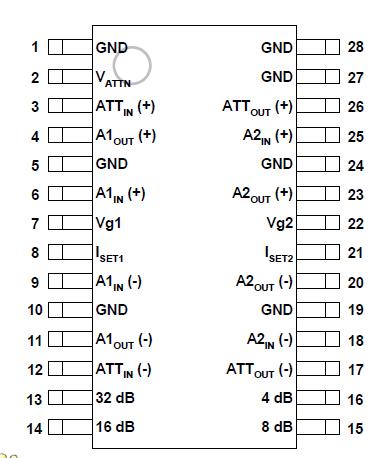

The ARA2005 is designed to provide the reverse path amplification and output level control functions in a CATV Set-Top Box or Cable Modem. ARA2005 incorporates a digitally controlled precision step attenuator that is preceded by an ultra low noise amplifier stage, and followed by an ultra-linear output driver amplifier. ARA2005 uses a balanced circuit design that exceeds the MCNS/DOCSIS requirement for harmonicperformance at a +60 dBmV output level while only requiring a single polarity +5 V supply. Both the input and output are matched to 75 ohms with an appropriate transformer. The precision attenuator provides up to 58 dB of attenuation in 1 dB increments via a three-wire serial interface. With external passive components, ARA2005 meets IEC 1000-4-12 and ANSI/IEEE C62.41-1991 100KHz ringwave tests, as well as IEC1000-4-5 1.2/50 S surge tests. The ARA2005 is offered in a 28-pin SSOP package featuring a heat slug on the bottom of the package.
