MFG:ALPHA
Part Number: AS115-61
MFG: ALPHA
Description: The AS115-61 is a high isolation SP4T FET IC non-reflective switch.The switch operates with 0 and...
- Table of contents:
AS115-61
-
Suppliers
DataSheet
General Description
AS115-61 General Description
The AS115-61 is a high isolation SP4T FET IC non-reflective switch.The switch operates with 0 and -3 V or
-5 V over the frequency range of DC2 GHz.The insertion loss is 0.7 dB and isolation is 50 dB at 0.9 GHz.
The switch is ideal for cellular base station switch matrices.
AS115-61 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 2 W > 500 MHz 0/-7 V 0.5 W @ 50 MHz 0/-7 V |
| Control Voltage | -0.2 V, +-10 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -65°C to +150°C |
| JC | 25°C/W |
AS115-61 Features
-3 V to -5 V Operation
High Isolation (50 dB @ 0.9 GHz)
Low Insertion Loss (0.7 dB @ 0.9 GHz)
LQFP-32 Plastic Package
Non-Reflective All Ports
High Isolation (50 dB @ 0.9 GHz)
Low Insertion Loss (0.7 dB @ 0.9 GHz)
LQFP-32 Plastic Package
Non-Reflective All Ports

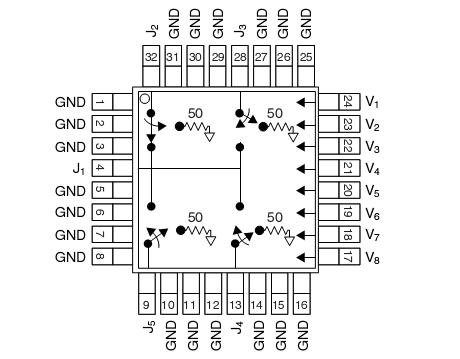

AS115-61 Connection Diagram
AS115-61
PDF/DataSheet Download
- Datasheet: AS115-61
- File Size: 439967 KB
- Manufacturer: SKYWORKS [Skyworks Solutions Inc.]
- Click here to Download
