Part Number: AS156-73



MFG: ALPHA

Package Cooled: SOP-6



Description: The AS156-73 is an SPST FET IC switch. The switch requires external DC blocking capacitors and on...


Urgent Purchase

AS156-73 General Description


The AS156-73 is an SPST FET IC switch. The switch requires external DC blocking capacitors and one
bypass capacitor.Isolation is optimized at 0.9 GHz utilizing 100 pF bypass capacitor and optimized at
1.9 GHz utilizing a 2.7 pF bypass capacitor.This switch requires a positive supply and single positive
control.The device is mounted in the SOT-6 package for surface mounting in commercial switching
applications, specifically as an LNA bypass switch.

AS156-73 Maximum Ratings

Characteristic Value
RF Input Power 2.5 W Max. > 500 MHz
0/+8 V Control
Supply VoltageVS +8 V
Control VoltageV1 -0.2 V, +8 V
Operating Temperature -40°C to +85°C
Storage Temperature -65°C to +150°C
JC 25°C/W

AS156-73 Features

Single Positive Control Voltage
+3 V to +5 V Operation
Isolation Can be Tuned to Desired Frequency
High Isolation (45 dB at 0.9 GHz with 100 pF Bypass Capacitor)
Designed for Use as an LNA Bypass Switch

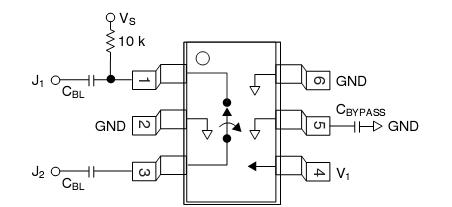

AS156-73 Connection Diagram

AS156-73 Connection Diagram

AS156-73 datasheet

AS156-73
PDF/DataSheet Download

  • Datasheet: AS156-73
  • File Size: 436404 KB
  • Manufacturer: SKYWORKS [Skyworks Solutions Inc.]
  • Click here to Download
