Part Number: AS172-73
MFG: ALPHA
Description: The AS172-73 is a PHEMT GaAs IC 4 port switch designed to combine T/R and antenna changeover swit...
- Table of contents:
AS172-73
-
Suppliers
DataSheet
General Description
AS172-73 General Description
The AS172-73 is a PHEMT GaAs IC 4 port switch designed to combine T/R and antenna changeover switching capability
within one device. This switch has two controls and is ideal for applications requiring low power consumption. The
AS172-73 has excellent performance to 2 GHz making it suitable for dual-band handset designs.
AS172-73 Maximum Ratings
| Characteristic | Value |
| RF Input Power | 2 W > 500 MHz, 0/+7 V Control |
| Control Voltage | -0.2 V, +8 V |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +150°C |
| JC | 25°C/W |
AS172-73 Features
High Linearity (+50 dBm IP3 @ 0.9 GHz)@ 3 V
Low Insertion Loss (0.4 dB @ 0.9 GHz)
Isolation (20 dB @ 0.9 GHz)
Simultaneous T/R Switching
Low Insertion Loss (0.4 dB @ 0.9 GHz)
Isolation (20 dB @ 0.9 GHz)
Simultaneous T/R Switching

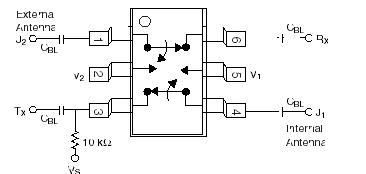

AS172-73 Connection Diagram
AS172-73
